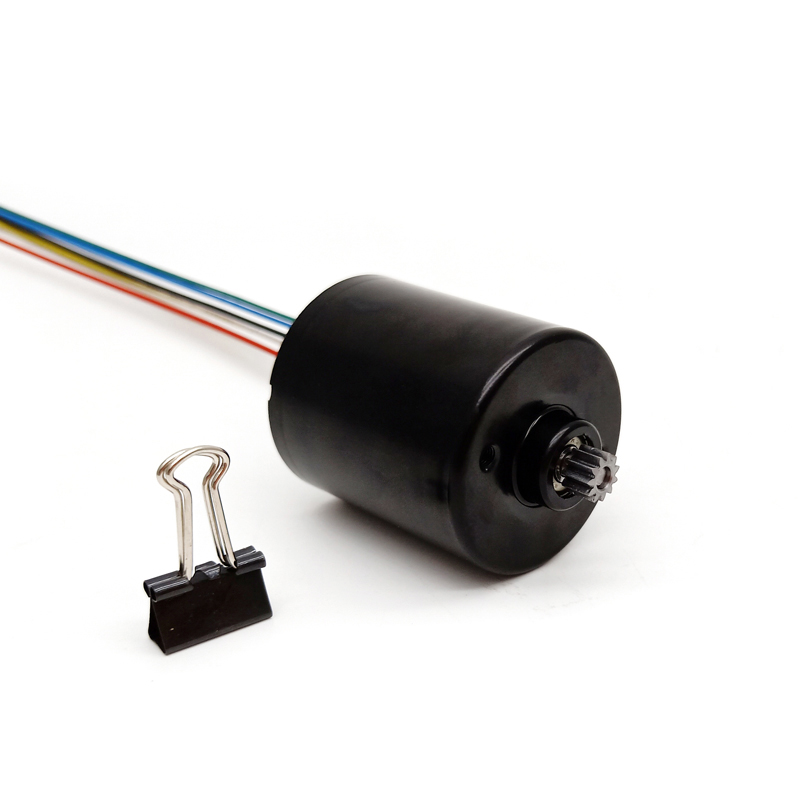

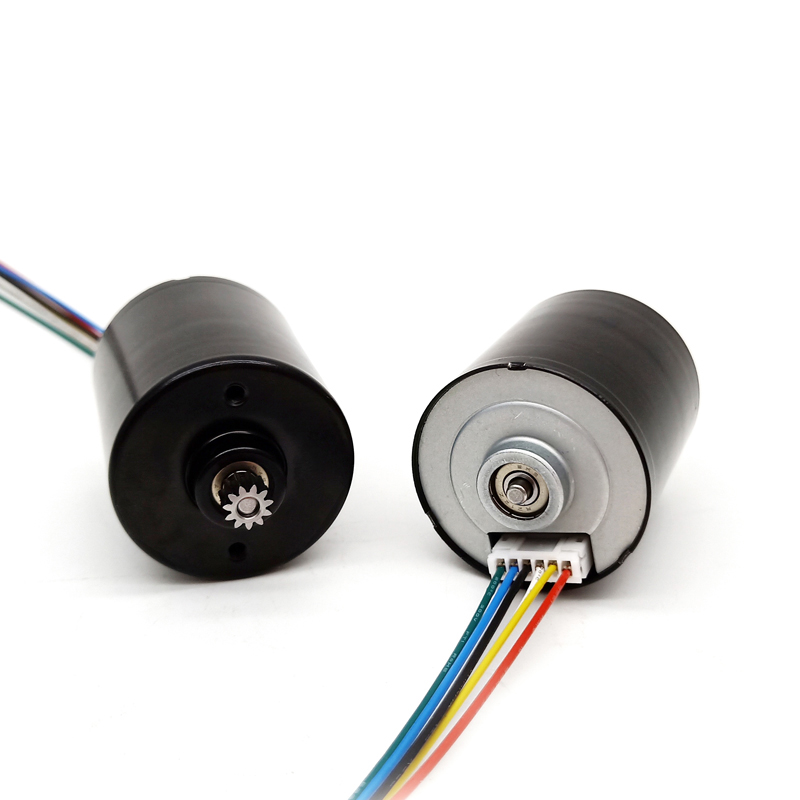

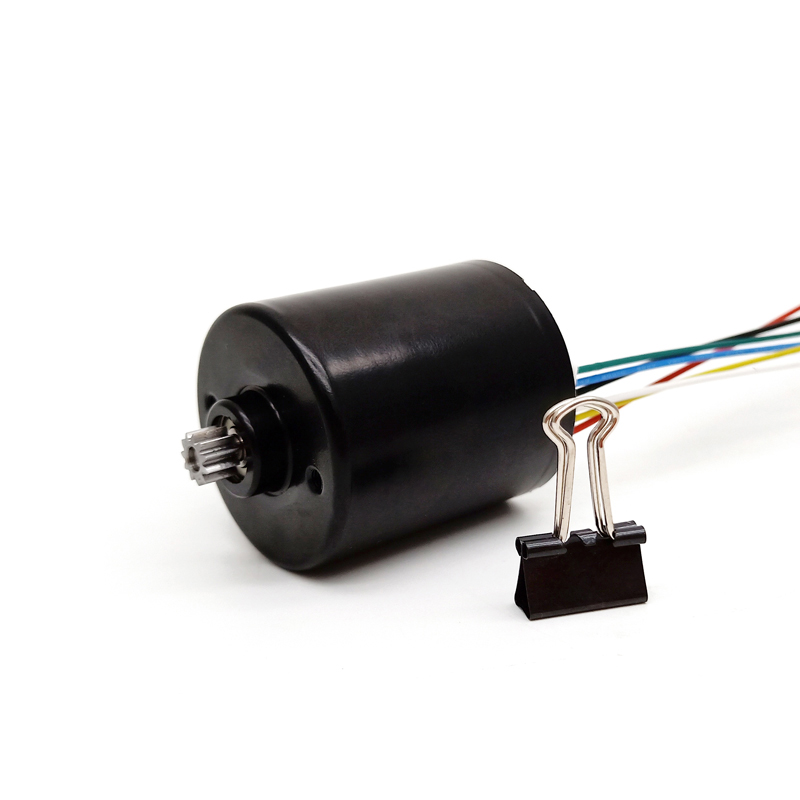

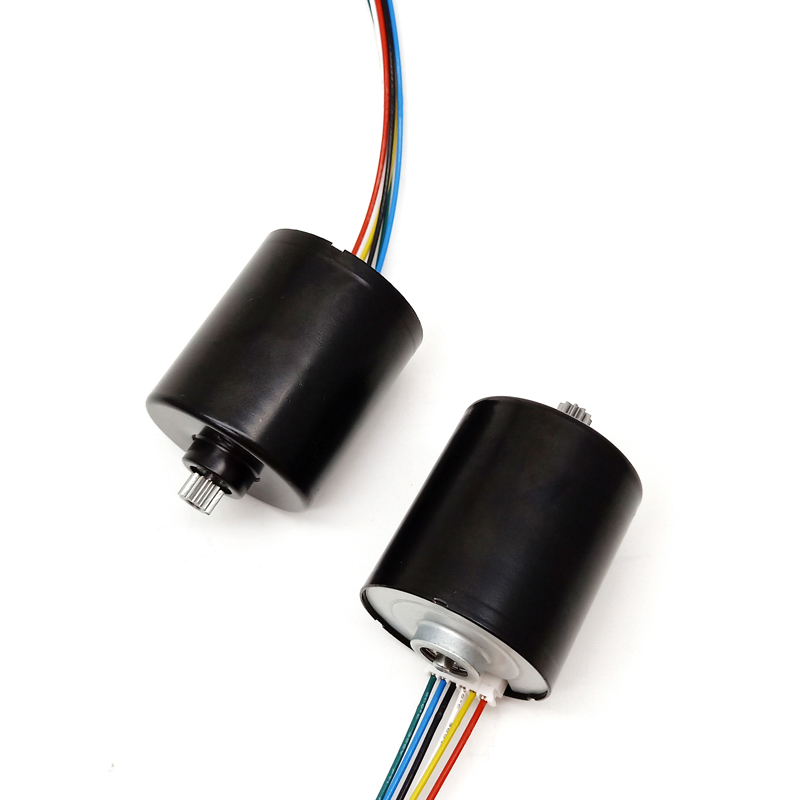

24v High Speed BLDC Motor 36mm Brushless DC Motor 12v
Product Application
Automatic door operatorsAutomatic energy saving bathElectrical controlled valveOxygen machineOptical equipmentAutomat cordless power toolLighting

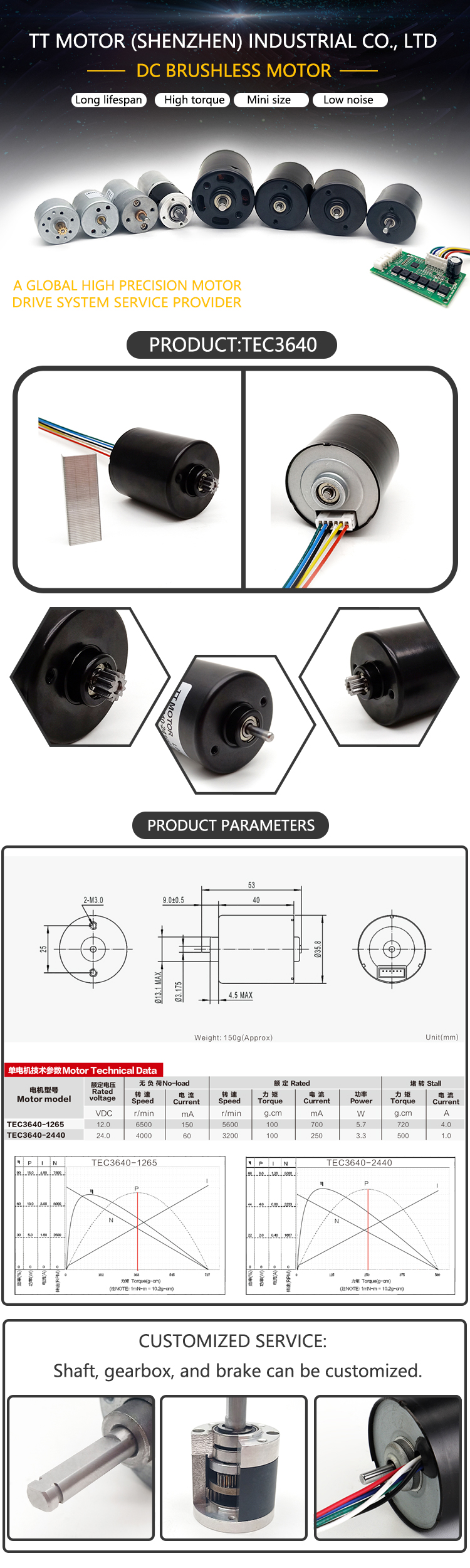

Specifications (Model: motor TEC3640)
Model
Rated Voltage
No-load Speed
No-load Current
Rated Speed
Rated Torque
Rated Current
Output Power
Stall Torque
Stall Current
TFC3640-1250
12VDC
5000r/min
750mA
4000r/min
150g.cm
1000mA
6.2W
600g.cm
2.5A
TFC3640-1233
12VDC
3300r/min
250mA
2400r/min
250g.cm
1000mA
6.2W
880g.cm
2.5A
TFC3640-2433
24VDC
3300r/min
130mA
2400r/min
300g.cm
500mA
7.4W
1650g.cm
3.0A

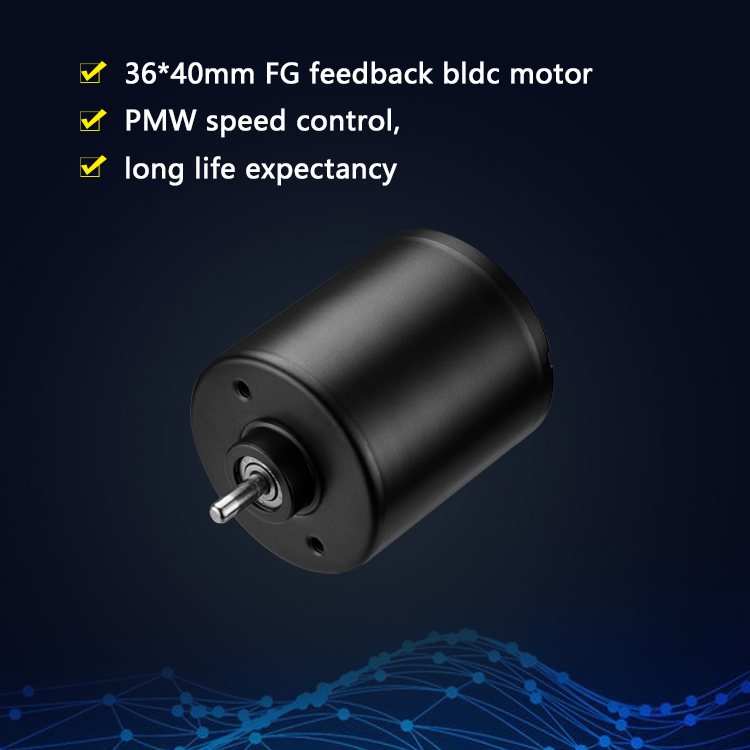

Main Features
36mm brushless motor
Low noise, long life. Built-in drive. Power on, then work
Reverse rotation and Brake control
PWM Speed control and FG signal feedback
Can be available with planetary gearbox
Product Applications
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications
Category
Applications
Business Machines
Vending Machines
Printers
ATM
Copiers and Scanners
Camera and Optical
Video
Cameras
Projectors
-
Lawn and Garden
Lawn Mowers
Snow Blowers
Trimmers
Leaf Blowers
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
