An in-depth analysis of the shift from brushed commutation to high-density brushless gear units in heavy-duty commercial and smart micro-drive applications.
For decades, sub-fractional drive designs were constrained by the physical limits of mechanical brush gear interfaces. As modern B2B industries strive for increased duty cycles, smaller form factors, and zero maintenance requirements, the integration of Brushless DC (BLDC) motors coupled with planetary or worm gearboxes has transitioned from a premium upgrade to a core engineering standard. Without mechanical brushes wearing down, the overall longevity of a BLDC gear motor is bounded primarily by its ball bearings and gear set wear, resulting in a MTBF (Mean Time Between Failures) that often exceeds 20,000 operational hours.
Furthermore, Dynetic Motor’s product line offers high electromagnetic density through precision stator winding processes, allowing for thermal profiles that run significantly cooler than standard micro-motors. This enables design engineers to operate these motors within sealed, IP-rated enclosures for applications such as external gate closures, chemical pumps, and medical surgery actuators.

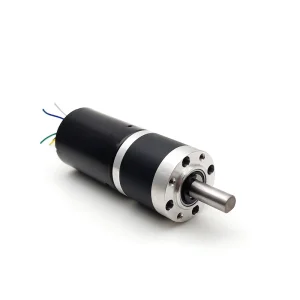

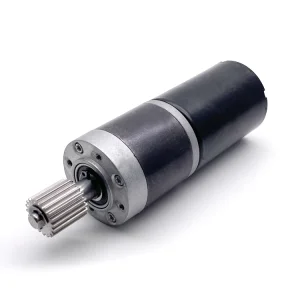

Understanding user intent in high-precision motion control requires differentiating the mechanical performance of gear reduction options. Planetary gearboxes distribute load-bearing torque across multiple planet gears simultaneously, maximizing power transfer in a concentric, inline form factor. This makes our 28mm, 36mm, and 42mm planetary series perfect for heavy-load, space-confined setups.
Conversely, worm gearboxes feature a 90-degree shaft configuration and inherently support a self-locking mechanism. In applications like sliding doors or automated vertical hoists, this mechanical self-lock acts as an additional fail-safe against external reverse-forces when the electrical power is shut off. This reduces the dependency on mechanical brakes, simplifying overall bill-of-materials (BOM) costs.
Founded in 2006, Dynetic Motor has dedicated two decades to a single mission: engineering high-performance, compact, and reliable micro-drive solutions that bring modern innovations to life. Based in China, we are a certified High-Tech Enterprise integrating R&D, advanced manufacturing, and global B2B supply for Micro DC Motors, DC Gear Motors, and Brushless Motors (BLDC).
Our factory specializes in the miniature and precise. From smart home appliances and automotive electronic parts to medical devices and robotics, Dynetic Motor’s solutions are chosen globally for their exceptional power-to-size ratio, low noise levels, and extended operational lifespan. With an ISO9001-certified production facility and a robust technical R&D team holding multiple industry patents, we manage the entire manufacturing cycle with uncompromising quality control.
We understand that every innovative product requires unique motion specifications. That is why Dynetic Motor thrives on flexible OEM/ODM customization. Whether you need specialized technical parameters, custom shafts, bespoke gearheads, or integrated electronics, our engineering team works directly with your R&D department to deliver the exact micro-drive solution your project demands.
How we qualify gear geometry, torque curves, and long-term durability parameters inside our ISO 9001:2015 certified inspection center.
Integrating brushless drive technologies across medical robotics, high-speed logistics, outdoor smart machinery, and smart building infrastructure.

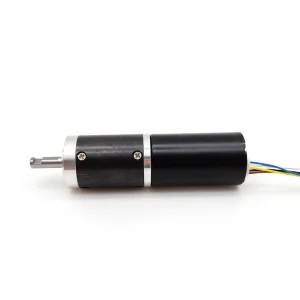

Medical pump systems, automatic centrifuges, and diagnostic instruments require compact micro-drives with minimal electromagnetic interference (EMI). Dynetic Motor's 28mm brushless planetary gears with built-in or external drivers provide smooth, low-cogging movement, compliant with surgical environment demands.
Autonomous Guided Vehicles (AGVs) and collaborative robots depend on high radial loads and high startup torque. Our 36mm and 42mm planetary BLDC systems deliver high power density, ensuring accurate steering and wheel propulsion under heavy payloads.
Industrial automatic gates and revolving doors require high torque at low RPMs, along with silent operation. The 60mm high-torque BLDC motor (200W) offers durable drive control, featuring integrated Hall sensor loops to manage deceleration and soft-stopping profiles.
To address rising requirements for smart factory networks, Dynetic Motor is shifting focus toward integrated CANopen and Modbus fieldbus protocols directly into our motor driver boards. By mounting field-oriented control (FOC) chips inside the end cap of the 4260 and 3650 motor frames, we reduce external wiring by up to 60%, mitigating line noise in industrial environments.
On the mechanical side, we are expanding our gear production line with advanced polymer-metal hybrid gearboxes. These hybrid configurations replace primary-stage steel gears with noise-dampening high-grade engineering polymers, reducing operational acoustic noise levels to below 40dB while maintaining structural integrity at high torque outputs.
Clear, expert-level answers regarding selection, customization, and factory procurement of brushless gear motors.
For standard gear ratio adjustments or shaft modifications, prototype turnaround is generally 15 to 20 business days. Highly customized housing designs, custom planetary gear assemblies, or specialized integrated PCBs require approximately 30 to 45 days, which includes structural validation and thermal cycle testing.
We address gear noise through multiple methods: choosing precision hobbing tooling to minimize gear profile errors, pairing helical metal gears with low-friction polymer gears, and using specialized synthetic lubricants that reduce friction and vibrations at high input speeds.
Yes. We supply planetary and worm-geared BLDC motors with either built-in internal driver boards or external drive units. Our designs feature integrated Hall sensors for accurate speed feedback and position control loop integration, simplifying connection to your primary controllers.
In outdoor applications (such as automatic lawn mowers or external gate systems), brushed motors are susceptible to carbon brush oxidation and dust ingress. Brushless gear motors eliminate these wear points. They feature fully enclosed IP-rated housings that protect the internals from humidity and debris, providing a longer service life under variable temperatures.
