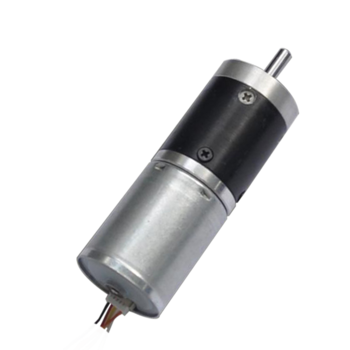

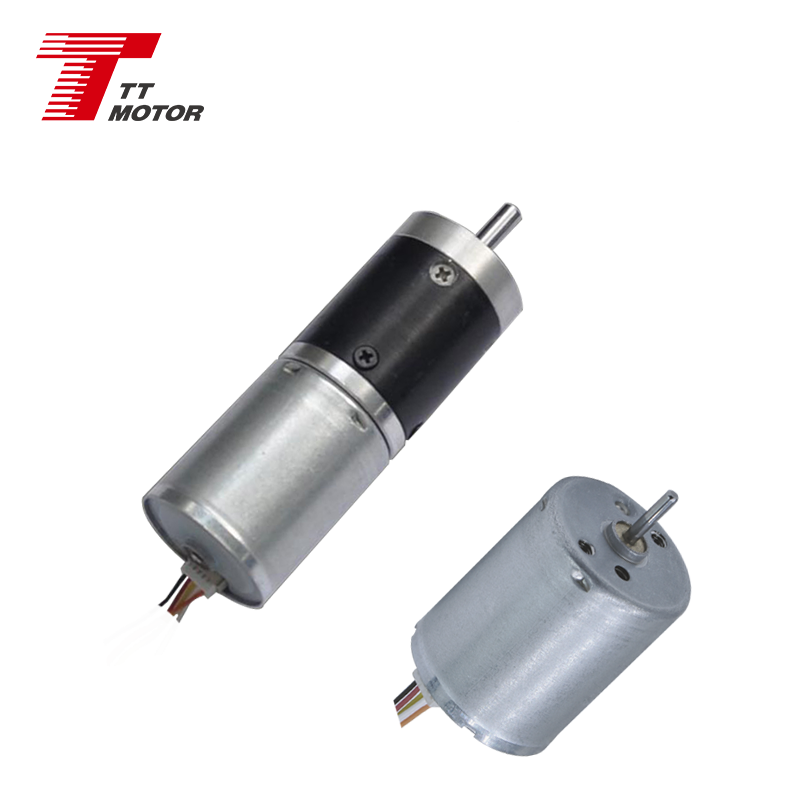

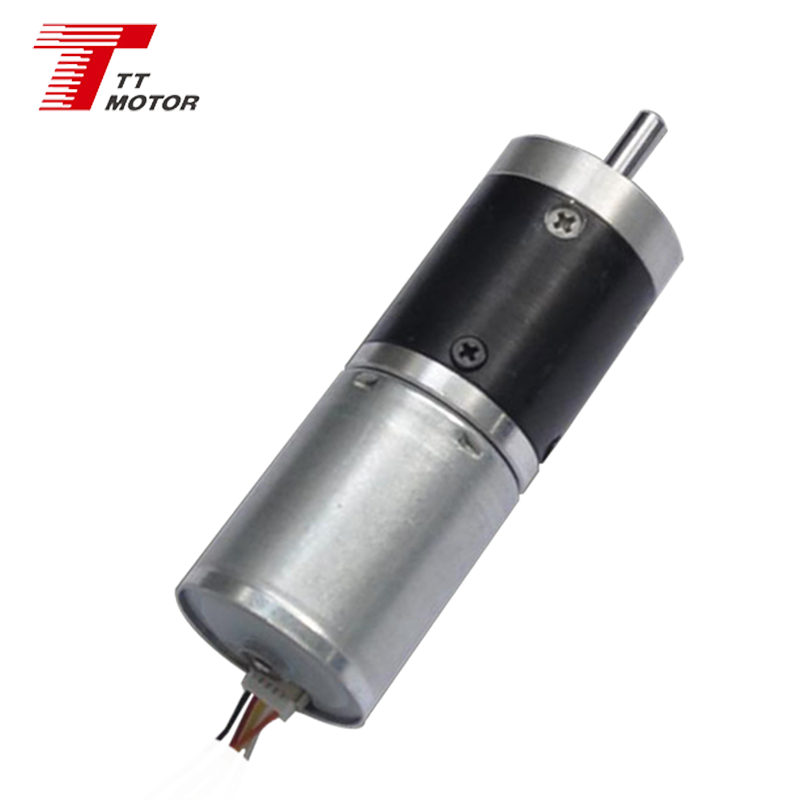

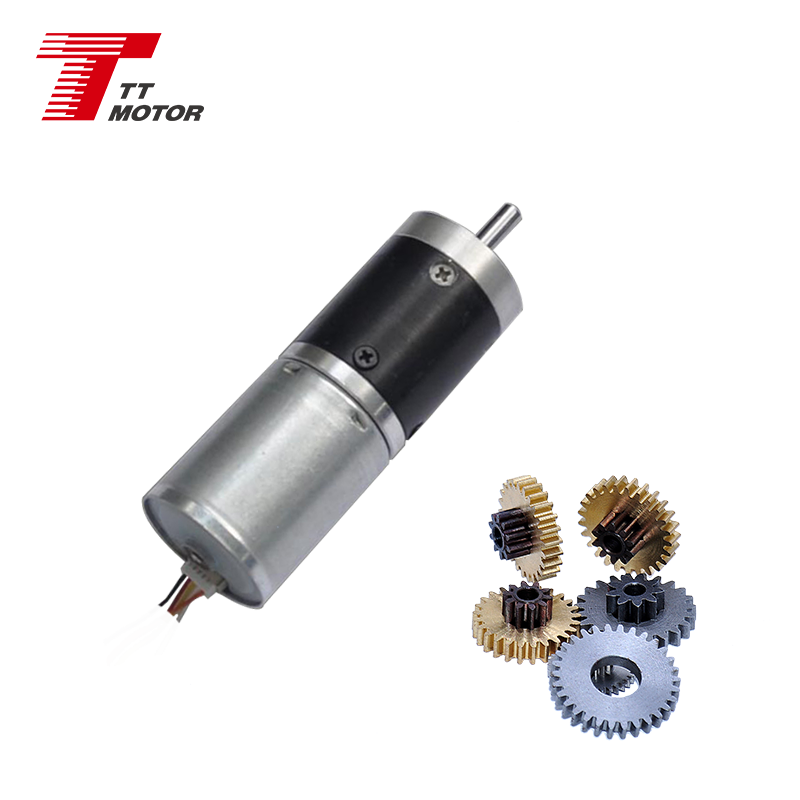

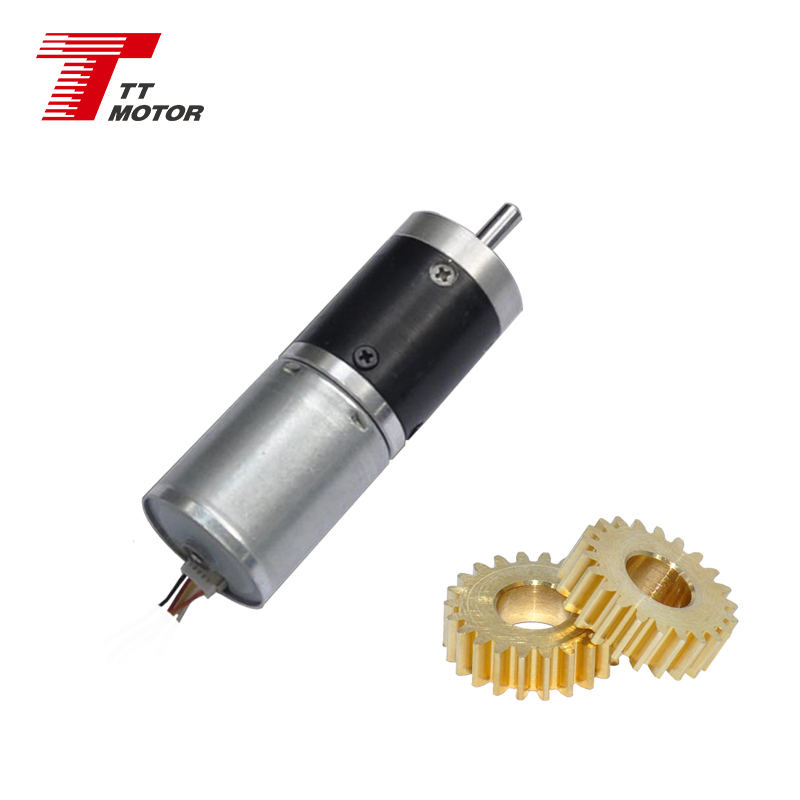

GMP24-TEC2430 24mm Geared Motor Electric 12v Brushless Motor

1 / 5

GMP24-TEC2430 24mm Geared Motor Electric 12v Brushless Motor

Send Inquiry

Product Description

GMP24-TEC2430 24mm geared motor electric 12v brushless motor

24mm planetary gearbox plus 24mm brushless motor
Small size dc gear motor with low speed and big torque
24mm gear motor provide 0.5Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720

Technical Specifications

Motor model no.	Rated voltage	No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
Motor model no.	VDC	r/min	mA	r/min	g.cm	mA	W	g.cm	A
TEC2430-1255	12	5500	90	4500	50	330	2.3	270	1.4
TEC2430-2455	24	5500	50	4500	50	180	2.3	270	0.75

Gearbox Performance Data

Reduction ratio	19	27	51	71	100	189	264	369	516
Length mm	58.8	58.8	63.8	63.8	63.8	68.8	68.8	68.8	68.8
No-load speed rpm	280	195	105	75	55	29	21	15	11
Rated speed rpm	250	180	95	68	48	25	18	13	9
Rated torque kg.cm	0.6	1.0	1.4	2.0	2.8	5.0	5.0	5.0	5.0

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Other Applications

Category	Applications
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	—
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.

Manufacturing Expertise

Specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging a hard-won reputation for honesty, dependability and quality, the aim is to continue as a pioneer in the sales overseas by seeking global partners.

Key Customers

NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard packaging solutions to ensure safety during transit.

Shipping Lead Times

DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post / Sea: Timeframe varies depending on destination country.

Customer Feedback

"Excellent quality, better price, good service, and on time delivery."

Frequently Asked Questions

Q: How to place an order?

A: Submit an inquiry → receive a detailed quotation → negotiate and confirm technical specifications → approve prototype sample → execute contract and submit deposit → initiation of mass production → production completion notification → balance payment verification → dispatch and shipment delivery → ongoing client support.

Q: Are sample orders accommodated?

A: Yes, samples are available for evaluations. The initial sample fee will be fully credited and refunded upon the execution of a formal production order.

Q: What shipping modalities are available?

A: Comprehensive shipping options are supported including DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight. Alternative shipping methods can be configured upon request.

Q: What is the typical lead time for manufacturing and shipping?

A: Lead times are subject to volume requirements. The standard manufacturing timeframe ranges from 15 to 25 working days.

Q: How to handle instances of missing components in a shipment?

A: If a shipment is incomplete, please coordinate with the support team to cross-verify the package contents against the order manifest for prompt resolution.

Q: What payment terms and confirmation processes are accepted?

A: Transactions can be settled via T/T and PayPal, among other approved payment networks. The standard structure involves a 30-50% deposit, with the remaining balance due prior to product shipment.
