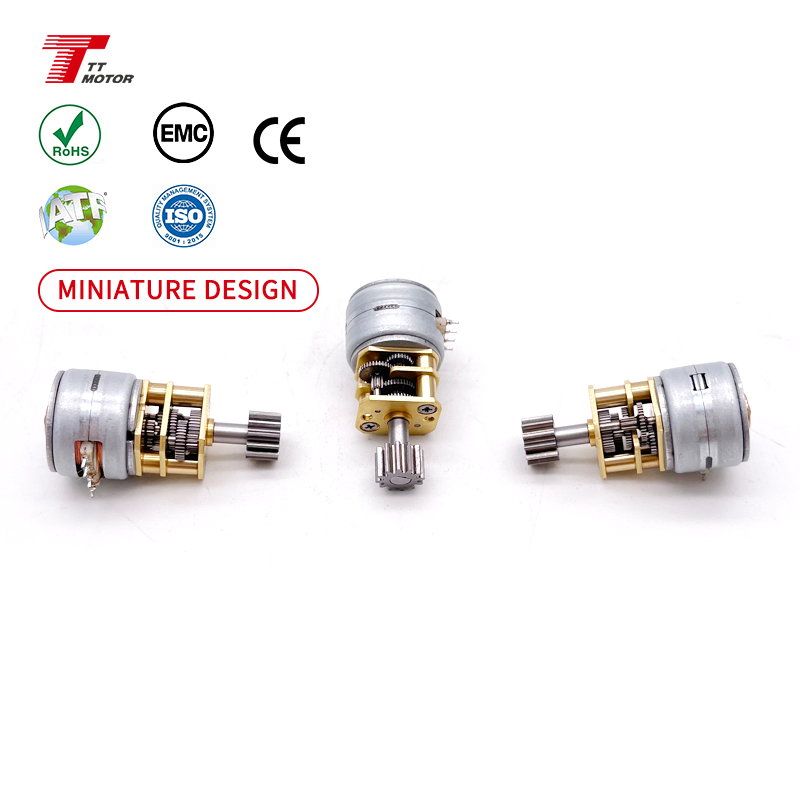

GM12-15BY
15mm dc gear motor 5v
Main Features
- 12*10mm gearbox plus 15mm dc gear motor 5v
- Small size dc gear motor with low speed and big torque
- 12mm gear motor provide 0.05Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- Reduction ratio: 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, 380
Motor Specifications
| Model |
Electrical Specifications |
Performance Details |
| GM12-15BY-30 |
Rated voltage: 5VDC
No. of Phase: 2
Step Angle: 18°
Gear Ratio: 1/30
|
Resistance: 10Ω
Holding Torque: 500g.cm
Current: 500mA
Pull in Rate: 800pps
|
| GM12-15BY-50 |
Rated voltage: 5VDC
No. of Phase: 2
Step Angle: 18°
Gear Ratio: 1/50
|
Resistance: 10Ω
Holding Torque: 700g.cm
Current: 500mA
Pull in Rate: 850pps
|
| GM12-15BY-110 |
Rated voltage: 5VDC
No. of Phase: 2
Step Angle: 18°
Gear Ratio: 1/110
|
Resistance: 10Ω
Holding Torque: 1050g.cm
Current: 500mA
Pull in Rate: 850pps
|
Factory Overview
We have been specializing in DC Gear Motors, Brushless DC Motors, Stepper Motors, and Coreless Motors since 2006.
Our motors are designed to be quiet, high torque and durable with numerous sizes options. They are widely used in robotics, electric vehicle, pump, medical equipment, home and Industrial appliances, etc. Our motors are sold all over the world.
In addition, we have obtained certifications ISO9001:2015 and IATF16949. In recent years, our company has introduced a series of advanced equipment, including 100 sets Wahli hobbing machines, winding machines, auto lathe and so on.
By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners.

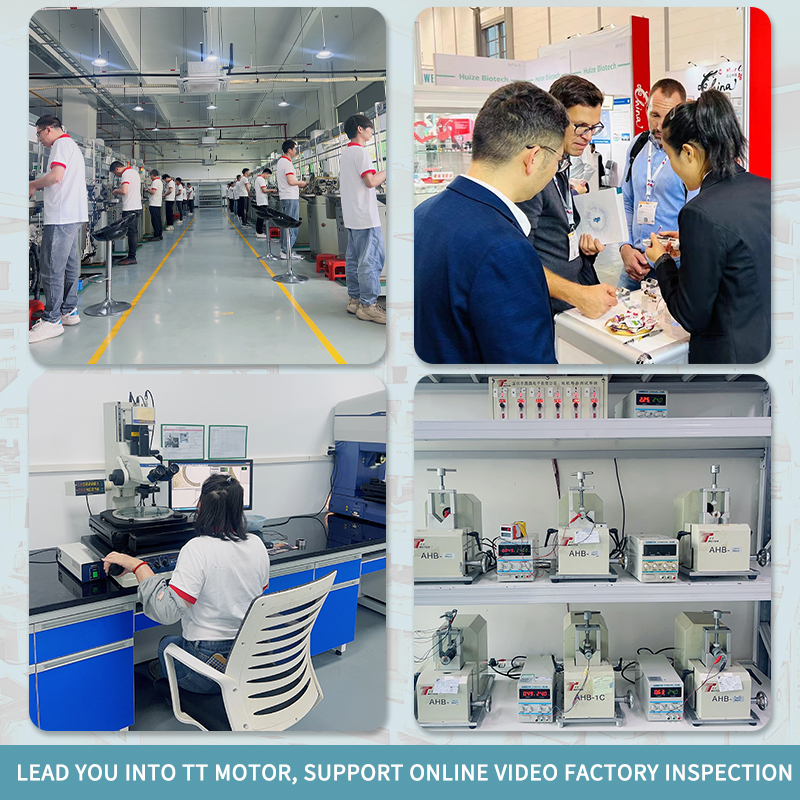

Manufacturing Capacity & Equipment
Frequently Asked Questions
What is the rated voltage of the GM12-15BY DC gear motor?
The standard rated voltage for this micro DC gear motor is 5V DC.
What are the available gear reduction ratios?
We offer a wide selection of reduction ratios including 3, 5, 10, 20, 30, 50, 60, 100, 150, 210, 250, 298, and 380 to meet different speed and torque requirements.
What are the primary applications for this motor?
Due to its small size, low noise, and high torque output, it is highly suitable for robotics, medical equipment, home appliances, automated locks, and other small-diameter precision applications.
What certifications does the production facility hold?
Our manufacturing processes are certified under international quality standards ISO9001:2015 and IATF16949.
What kind of equipment is used to ensure motor quality?
Our workshop is equipped with advanced machinery including 100 sets of Wahli hobbing machines, automated winding machines, and high-precision automatic lathes.
