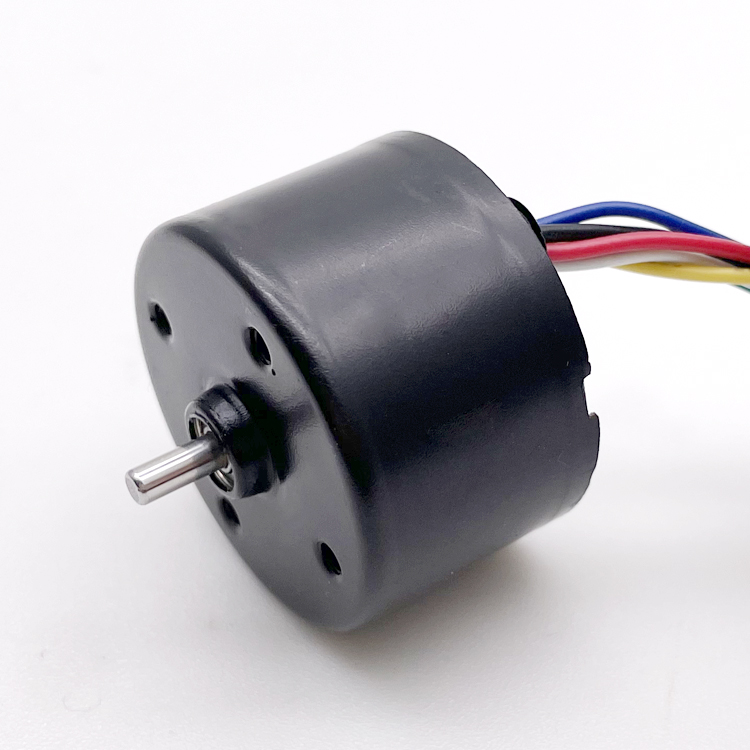

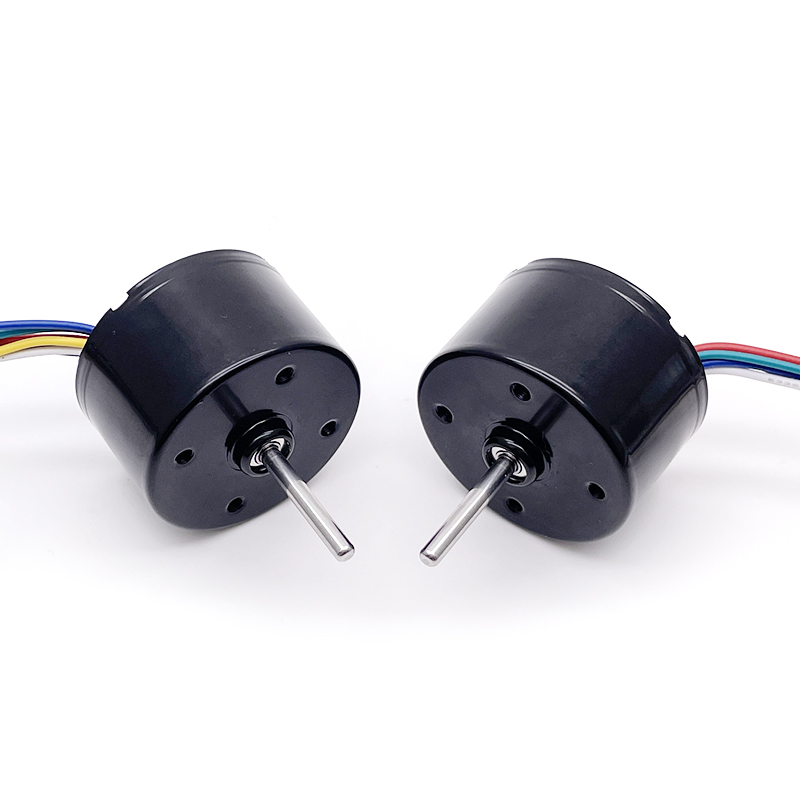

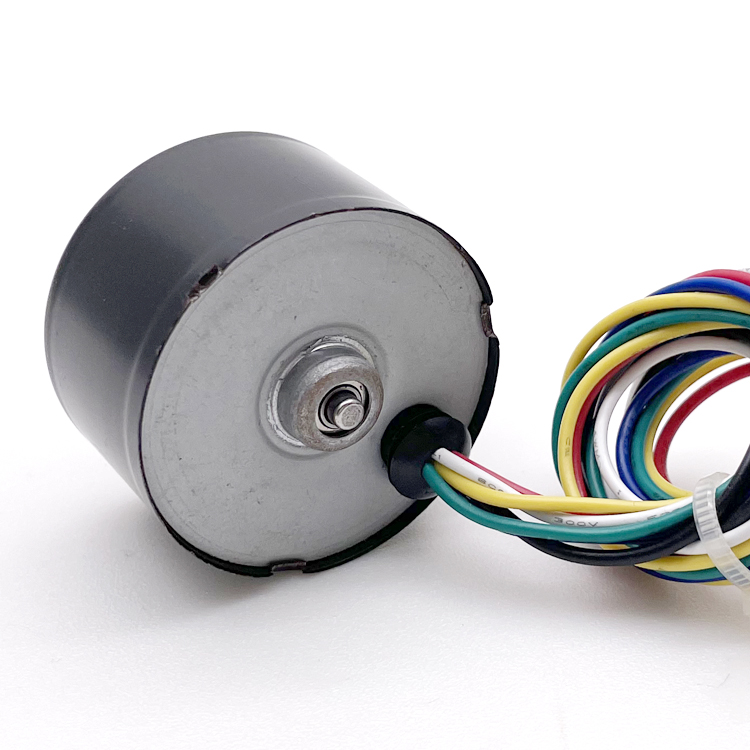

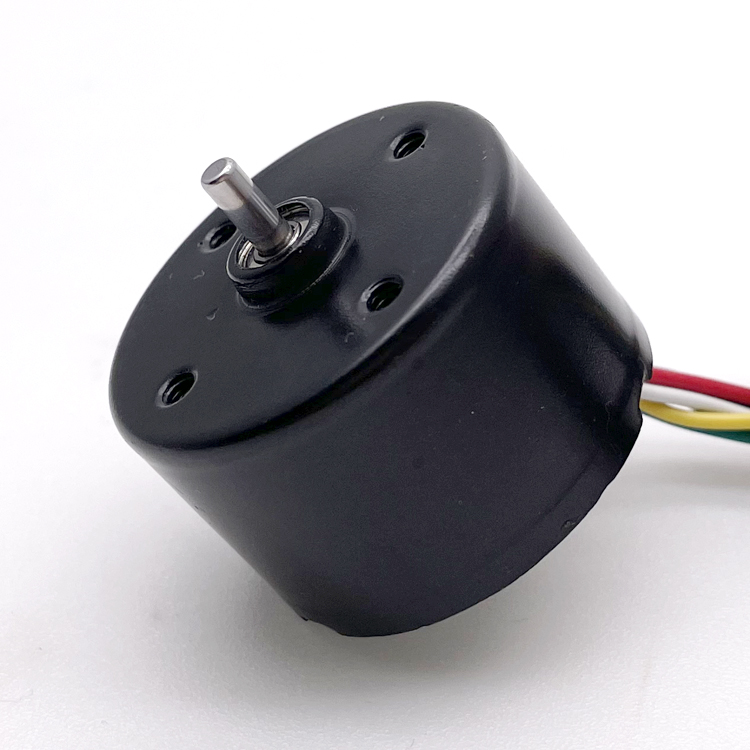

12V 24V BLDC Brushless DC Motor High Quality Efficient Electric Motor

Main Features

36mm brushless motor
Low noise, long life. Built-in drive. Power on, then work
Reverse rotation and Brake control
PWM Speed control and FG signal feedback
Can be available with planetary gearbox

Model: motor TEC3625
TFC3625-0630	Rated voltage: 6VDC	Rated speed: 2100r/min	Output power: 2.2W
	No-load speed: 3000r/min	Rated torque: 100g.cm	Stall torque: 340g.cm
	No-load current: 210mA	Rated current: 400mA	Stall current: 1.8A
TFC3625-1255	Rated voltage: 12VDC	Rated speed: 4600r/min	Output power: 4.6W
	No-load speed: 5500r/min	Rated torque: 84g.cm	Stall torque: 140g.cm
	No-load current: 180mA	Rated current: 800mA	Stall current: 1.6A
TFC3625-2480	Rated voltage: 24VDC	Rated speed: 5900r/min	Output power: 16.5W
	No-load speed: 8000r/min	Rated torque: 270g.cm	Stall torque: 680g.cm
	No-load current: 160mA	Rated current: 900mA	Stall current: 2.0A

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Others application
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	-
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.

Our Company

We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners.

Our Customers

NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard packing

Shipping time:

DHL: 3-5 working days; UPS: 5-7 working days; TNT: 5-7 working days; FedEx: 7-9 working days; EMS: 12-15 working days; China Post: Depends on destination country; Sea: Depends on destination country.

Our Customer Feedback

"Excellent quality, better price, good service, and on time delivery."

Frequently Asked Questions

Q: How to order?

A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

Q: How about Sample order?

A: Sample is available for you. Once sample fee is charged, it will be refunded when you place formal order.

Q: Which shipping way is available?

A: DHL, UPS, FedEx, TNT, EMS, China Post, and Sea shipping are available. Other shipping ways are also available upon request.

Q: How long is the delivery [producing] and shipping?

A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.

Q: My package has missing products. What can I do?

A: Please contact our support team and we will confirm your order with the package contents.

Q: How to confirm the payment?

A: We accept payment by T/T, PayPal, and other methods. A 30-50% deposit is available, with the remaining balance to be paid before shipping.

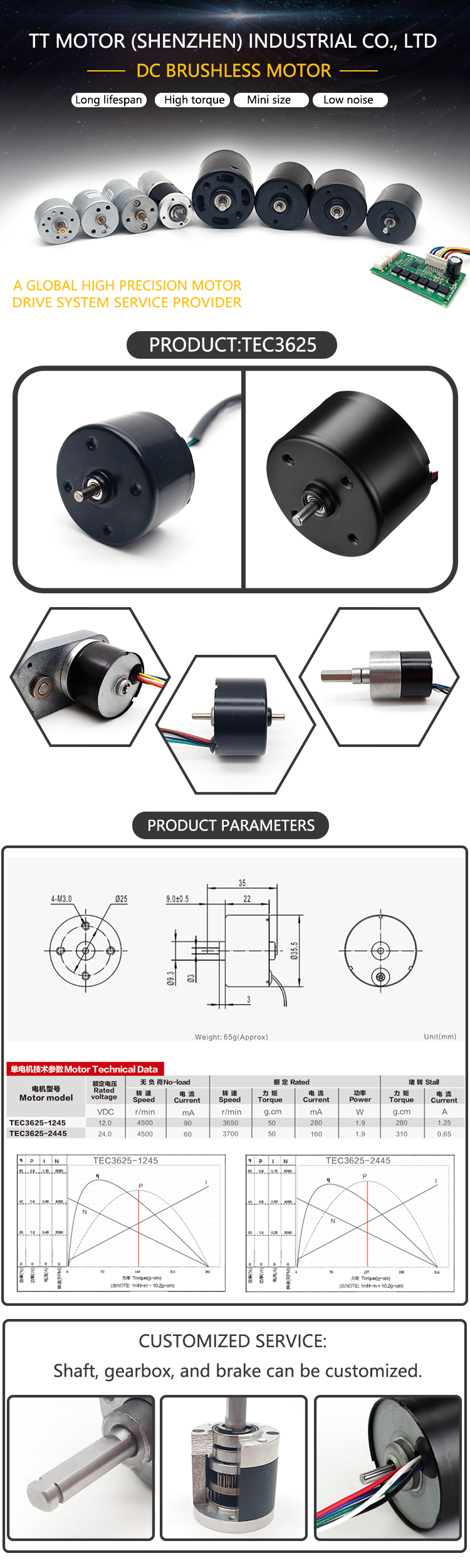

Product Detail

12V 24V BLDC Brushless DC Motor High Quality Efficient Electric Motor

Product Description
