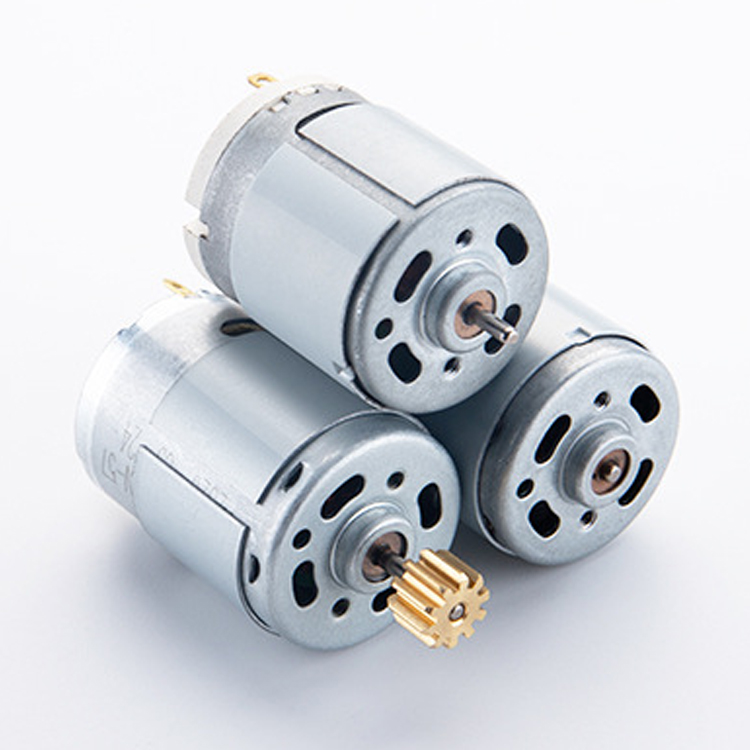

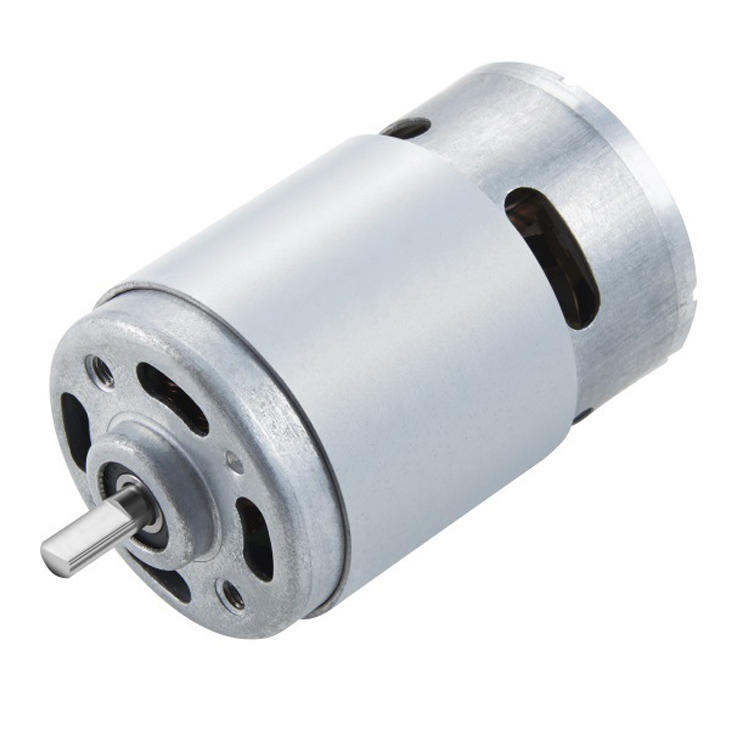

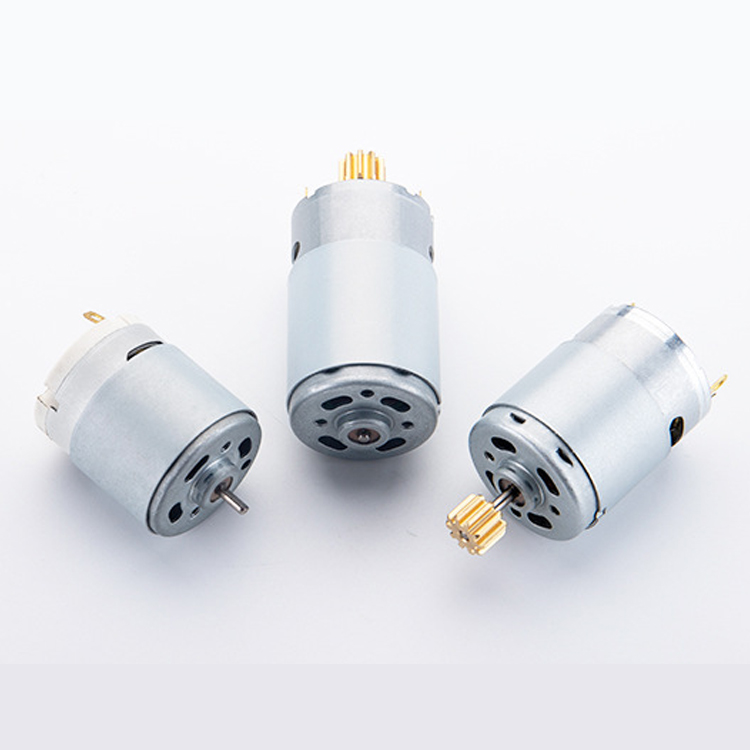

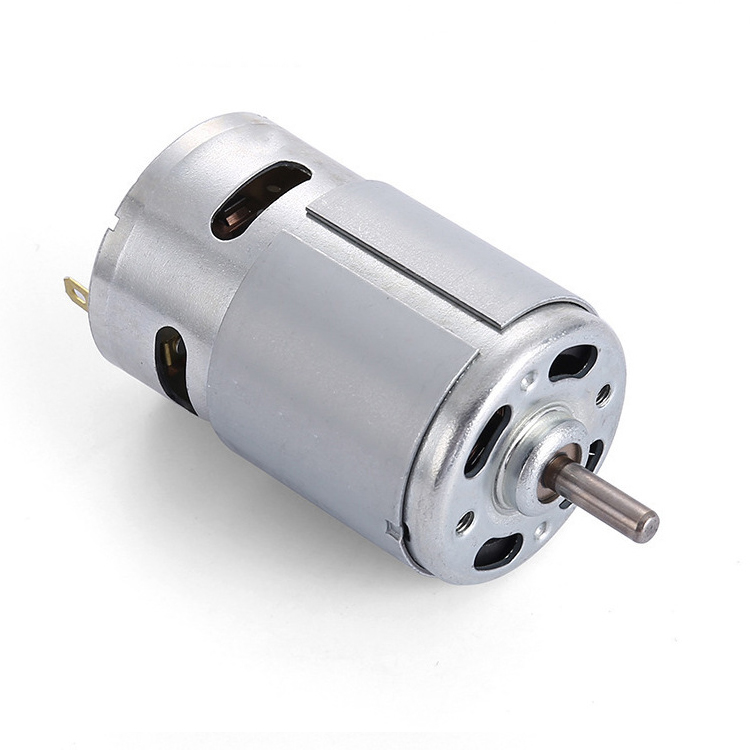

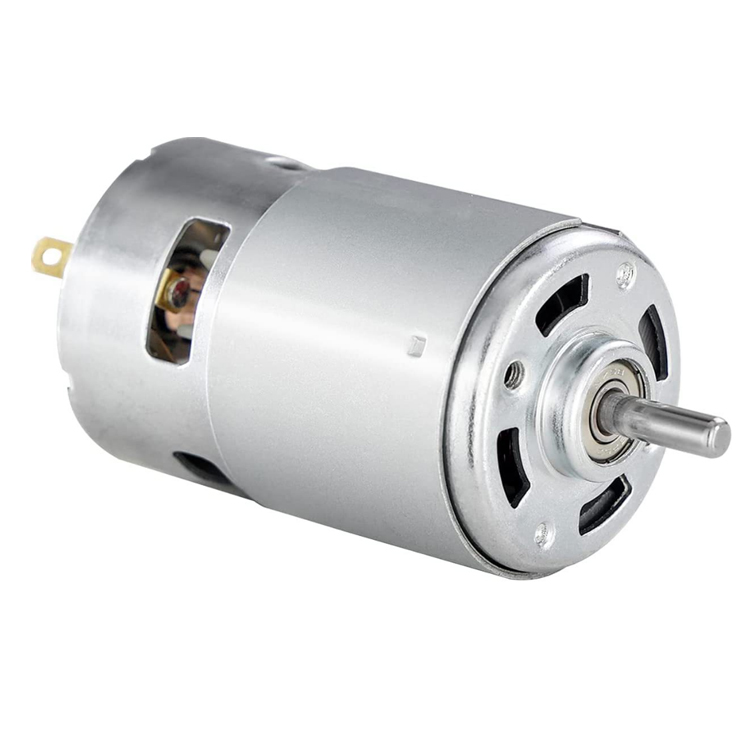

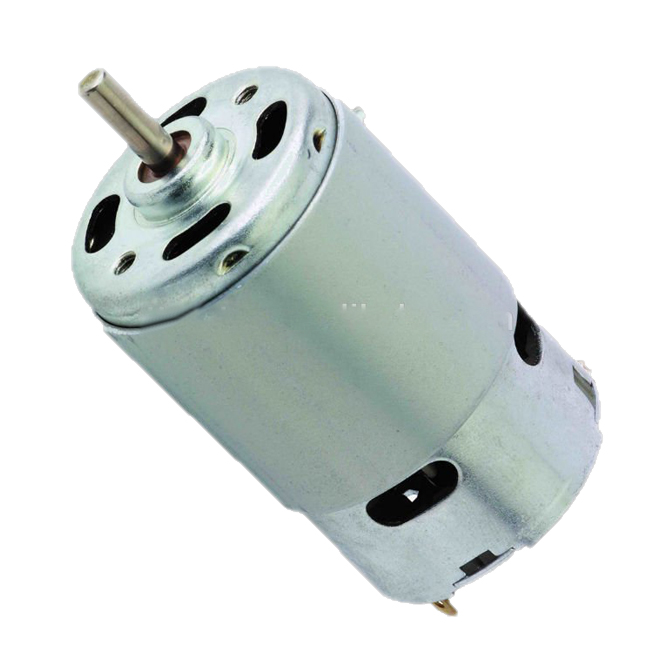

High RPM RS-555 and RS-775 DC Motor 12V 24V DC Brushed Motor
Key Product Specifications & Features
Typical Applications: Printer, Copy Machine, Sewing Machine, Water Pump, Hair Dryer, Circular Saw, String Trimmer, etc.
High Efficiency Performance: Features high efficiency, less noise, and low current consumption, optimized for 24V DC motor operations.
Gearbox Compatibility: Can easily match with 45mm planetary gearbox or 51mm gearbox systems.
Shaft Dimensions: 5.0mm diameter shaft with available shaft lengths of 14.5mm or 19.5mm.
Mounting Configuration: Designed with 2-M4.0x0.7 mounting holes for secure installation.
Encoder Integration: Double shaft configuration suitable for encoder connection, 12ppr.
Sampling Service: Samples can be provided for your specific testing requirements.
MODEL
VOLTAGE
NO LOAD
AT MAXIMUM EFFICIENCY
STALL
OPERATING RANGE
NOMINAL
SPEED
CURRENT
SPEED
CURRENT
TORQUE
OUTPUT
TORQUE
CURRENT
V
rpm
A
rpm
A
mN.m
g.cm
w
mN.m
g.cm
A
TRS-775PM
2765
6.0-30.0
24.0
7600
0.37
5810
0.22
73.53
750
44.7
312.35
3186
8.23
4045
6.0-15.0
12.0
4600
0.60
3500
4.30
84.31
860
36.6
352.94
3600
16.1
Dimensions & Dimensional Drawing
Frequently Asked Questions (FAQ)
Q1: What are the main applications of the RS-555 and RS-775 DC motors?
A1: These high RPM motors are ideal for mechanical and home appliances such as printers, copy machines, sewing machines, water pumps, hair dryers, circular saws, and string trimmers.
Q2: Can these motors be integrated with gearboxes?
A2: Yes, both motors can be customized and paired with either a 45mm planetary gearbox or a 51mm gearbox to achieve required speed and torque profiles.
Q3: What are the standard shaft configurations?
A3: The motors feature a 5.0mm shaft diameter. The standard shaft length configurations are available in 14.5mm and 19.5mm sizes, and can support a double shaft configuration for 12ppr encoders.
Q4: What voltages do the TRS-775PM motors support?
A4: The operational voltage range is 6.0V to 30.0V DC. Model 2765 has a nominal voltage of 24.0V, while Model 4045 functions at a nominal voltage of 12.0V.
Q5: Can I request samples before placing a bulk order?
A5: Yes, we provide sample units specifically for testing and evaluation purposes to verify performance under your operating parameters.
