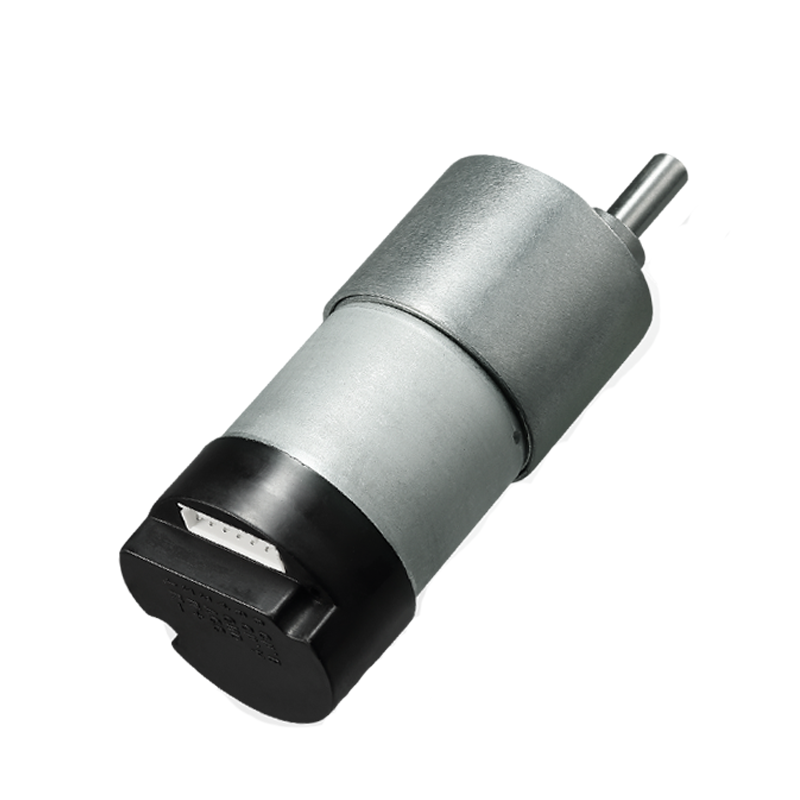

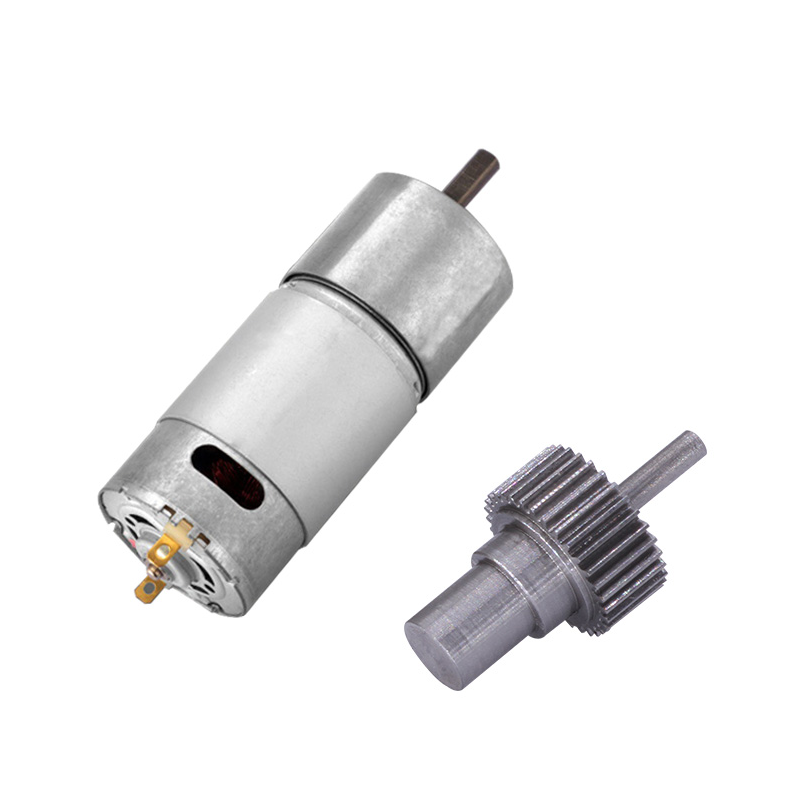

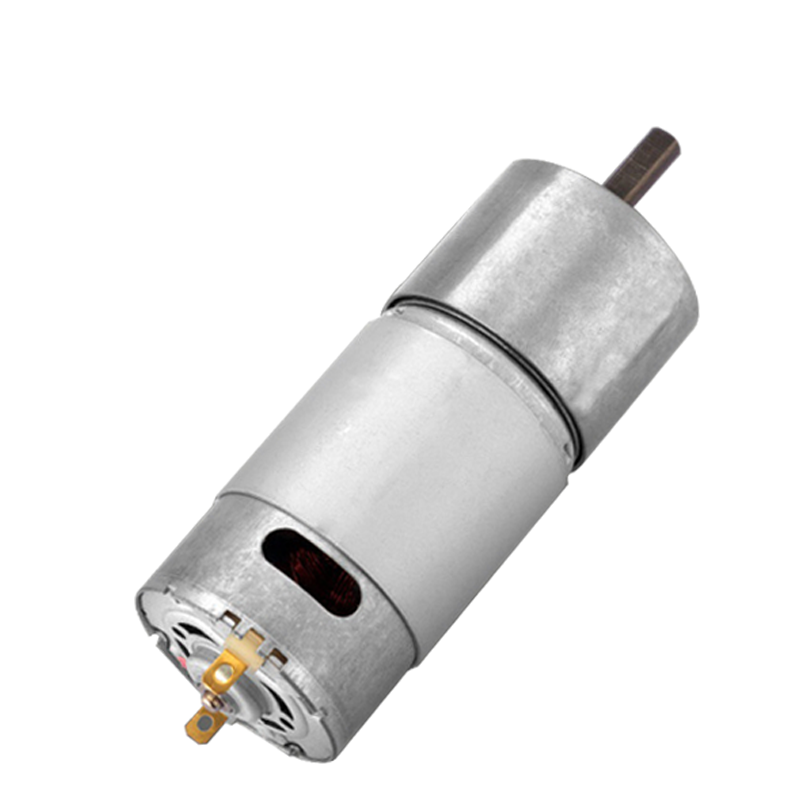

GM37-555PM-EN 37mm High Quality Dc Gear Motor 24v With Encoder

1 / 3

GM37-555PM-EN 37mm High Quality Dc Gear Motor 24v With Encoder

Send Inquiry

Product Description

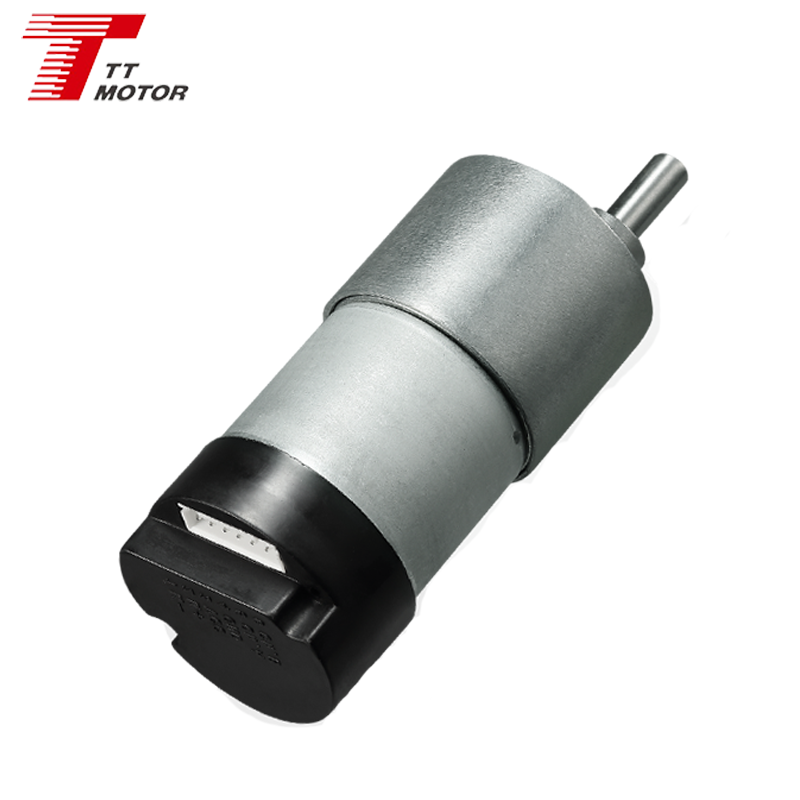

GM37-555PM-EN 37mm high quality dc gear motor 24v with encoder

🔹Product Description

Main Features

37mm Eccentric out shaft gearbox plus 520&3530&3527&5 series motor and TEC3650&3640 brushless motor
Small size dc gear motor with low speed and big torque
37mm gear motor provide 1.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder, 11ppr
Reduction ratio: 6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810

Model: Gear Motor GM37-555PM
TRS-555PM-1233	Rated voltage: 12VDC	Rated speed: 2800r/min	Output power: 5.7W
	No-load speed: 3300r/min	Rated torque: 200g.cm	Stall torque: 1150g.cm
	No-load current: 200mA	Rated current: 1000mA	Stall current: 5.5A
TRS-555PM-1260	Rated voltage: 12VDC	Rated speed: 5250r/min	Output power: 16W
	No-load speed: 6000r/min	Rated torque: 290g.cm	Stall torque: 2200g.cm
	No-load current: 300mA	Rated current: 2400mA	Stall current: 15A
TRS-555PM-2440	Rated voltage: 24VDC	Rated speed: 3150r/min	Output power: 6.4W
	No-load speed: 4000r/min	Rated torque: 200g.cm	Stall torque: 1000g.cm
	No-load current: 150mA	Rated current: 700mA	Stall current: 2.7A

🔹Related Products

🔹GM37-555PM-1233-xxx

Reduction ratio	6	10	19	30	56	90	169	270	506
Length mm	19	19	21.5	21.5	24	24	26.5	26.5	29
No-load speed rpm	500	300	160	105	57	36	20	12	6.5
Rated speed rpm	450	280	150	90	60	31	18	11	6.3
Rated torque kg.cm	1.0	1.6	2.7	4.2	6.7	10	10	10	10
Max.momentary tolerance torque kg.cm	5.5	9.2	15	15	15	15	15	15	15

🔹GM37-555PM-1260-xxx

Reduction ratio	6	10	19	30	56	90	169	270	506
Length mm	19	19	21.5	21.5	24	24	26.5	26.5	29
No-load speed rpm	900	550	300	190	100	65	35	22	12
Rated speed rpm	870	525	275	175	90	61	34	22	12
Rated torque kg.cm	1.4	2.3	3.8	6.1	10	10	10	10	10
Max.momentary tolerance torque kg.cm	10	15	15	15	15	15	15	15	15

🔹GM37-555PM-2440-xxx

Reduction ratio	6	10	19	30	56	90	169	270	506
Length mm	19	19	21.5	21.5	24	24	26.5	26.5	29
No-load speed rpm	600	360	200	120	65	45	24	15	8
Rated speed rpm	520	315	165	105	56	36	21	14	8
Rated torque kg.cm	1.0	1.6	2.7	4.2	6.7	10	10	10	10
Max.momentary tolerance torque kg.cm	4.8	8.0	15	15	15	15	15	15	15

🔹Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

🔹Packing & Delivery

Packaging: single carton packing, 500 pieces per box.

Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which country

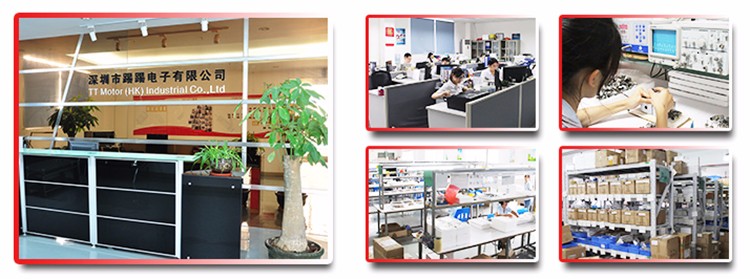

🔹Our Company

We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners.

🔹Certifications

❓FAQ

Q:How to order?

A: Send inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

Q:How about Sample order?

A: Sample is available. Any sample fees charged will be refunded when a formal order is placed.

Q:Which shipping way is available?

A: DHL, UPS, FedEx, TNT, EMS, China Post, and Sea are available. Other shipping ways can be coordinated according to requirements.

Q:How long is the deliver[Producing] and shipping?

A: Delivery time depends on the quantity you order. Usually it takes 15-25 working days.

Q:My package has missing products. What can I do?

A: Please contact our support team and we will confirm your order with the package contents. We apologize for any inconveniences.

Q:How to confirm the payment?

A: We accept payment by T/T, PayPal, and other payment ways. A 30-50% deposit is available, and the balance should be paid before shipping.
