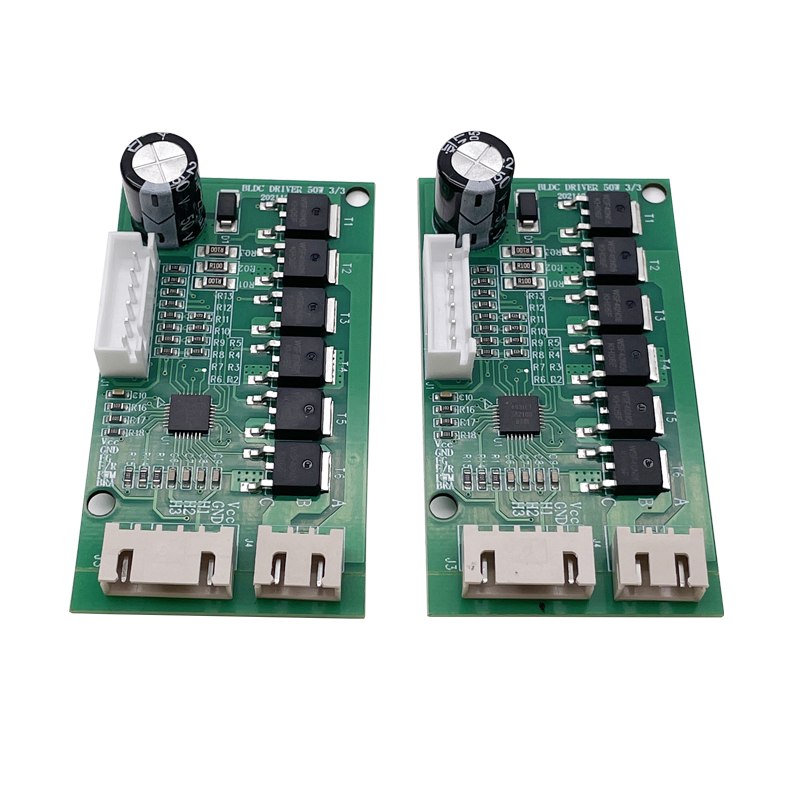

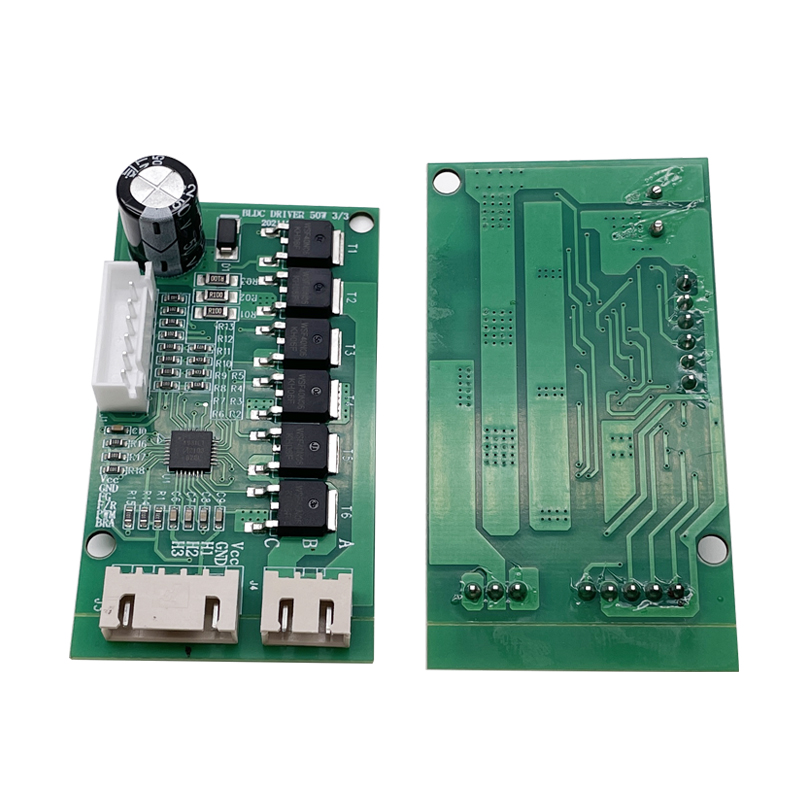

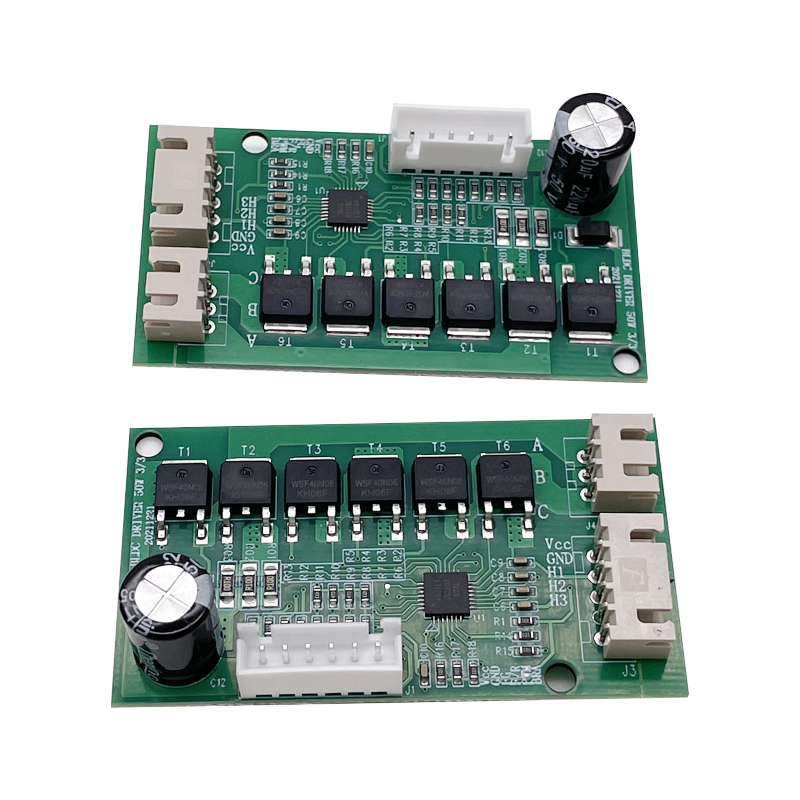

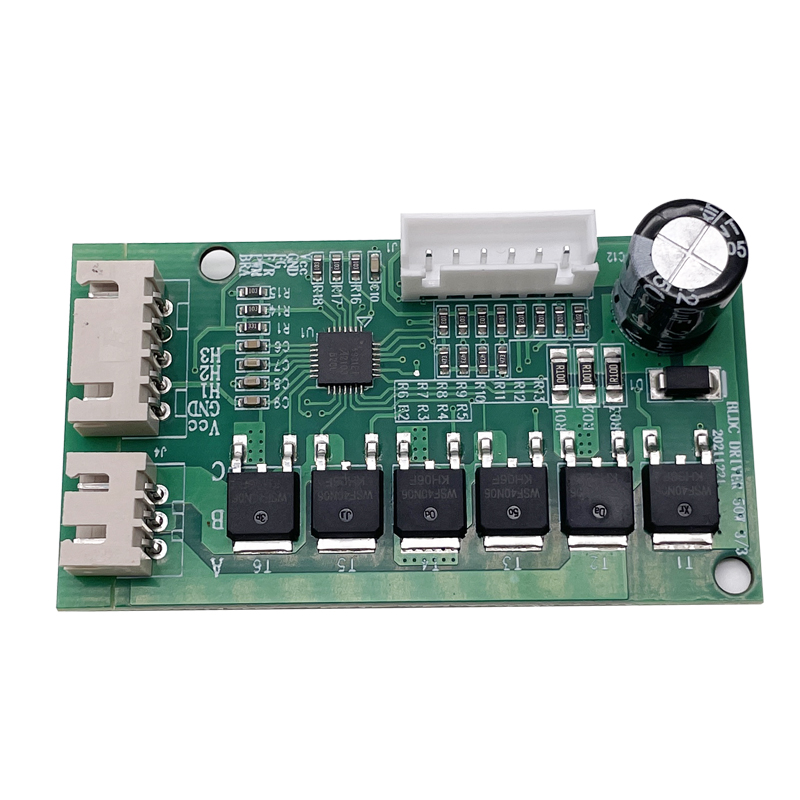

Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
1 / 5
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W
Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W

Factory Direct 8V-26V Brushless External Driver Start Stop Control PMW Control 50W

Send Inquiry

Product Description

Motor Banner
Driver Electrical Specifications

Driver Electrical Specifications

  • Driver Type: Inductive brushless motor driver
  • Voltage Range: DC8V-26V
  • Rated Power: ≤50W
  • Working Current: 3A
  • Current-Limiting Protection: 6A (Depends on external resistance)
  • Operating Temperature: -10°C - 70°C
  • Storage Temperature: -40°C - 105°C
  • Stall Protection: The motor will stop running if it is blocked for 2 seconds
  • Driver Size: 35mm × 58mm

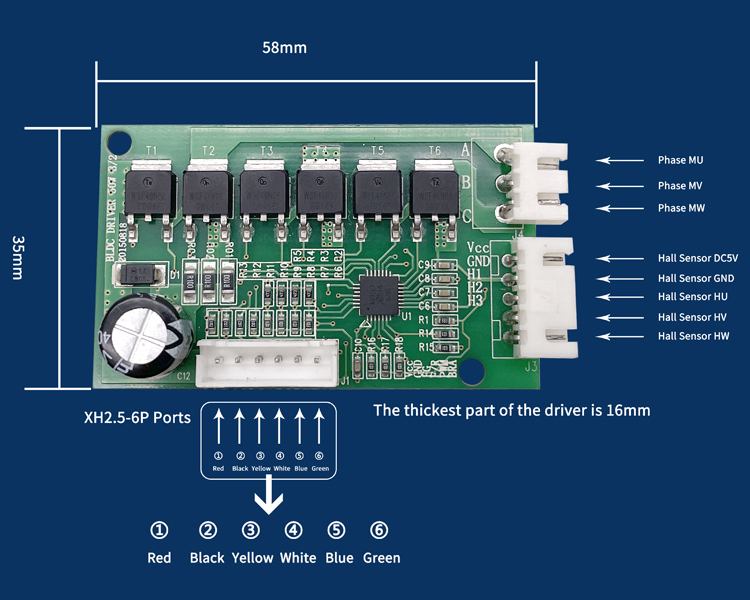

Motor Dimension Details
Motor Display 1 Motor Display 2 Motor Display 3

Our Company Profile

We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, tools, and many other fields. Dependable and long-lasting, our products are backed by years of industry experience. Currently, we export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability, and quality, we aim to continue as a pioneer in overseas sales by seeking global partners.
Factory Machine 1 Factory Machine 2 Factory Machine 3

Applications Scope

Application Category Applicable Products & Equipment
Business Machines Vending Machines Printers ATM Copiers and Scanners
Camera and Optical Video Cameras Projectors -
Lawn and Garden Lawn Mowers Snow Blowers Trimmers Leaf Blowers
Certification Display

Packing & Delivery

Standard Packing: Export-grade protective packaging to ensure product safety during transit.

Packaging Process 1 Packaging Process 2 Packaging Process 3 Packaging Process 4
Shipping Logistics

Shipping Services & Estimations

  • DHL: 3-5 working days
  • UPS: 5-7 working days
  • TNT: 5-7 working days
  • FedEx: 7-9 working days
  • EMS: 12-15 working days
  • China Post: Depends on target destination
  • Sea Freight: Depends on target destination

Frequently Asked Questions

How do I place an order?
Send us your inquiry → Receive our quotation → Negotiate order details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/Delivery → Further cooperation.
Are samples available?
Yes, samples are available. Any charged sample fees will be fully refunded once you place a formal production order.
What shipping options are available?
We support shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Other shipping arrangements can be made upon request.
What is the production and delivery timeframe?
Delivery times depend heavily on the order quantity, but standard orders typically take 15 to 25 working days.
What should I do if my package has missing products?
Please reach out to support, and we will promptly confirm the shipment details against the package contents to resolve the issue.
How do payments work?
We accept payments via T/T, PayPal, and other major methods. A 30-50% deposit is standard, with the remaining balance due before shipment.
