GM12-N20VA DC 6v Mini Metal N20 Gear Motor With Encoder

1 / 5

GM12-N20VA DC 6v Mini Metal N20 Gear Motor With Encoder

Send Inquiry

Product Description

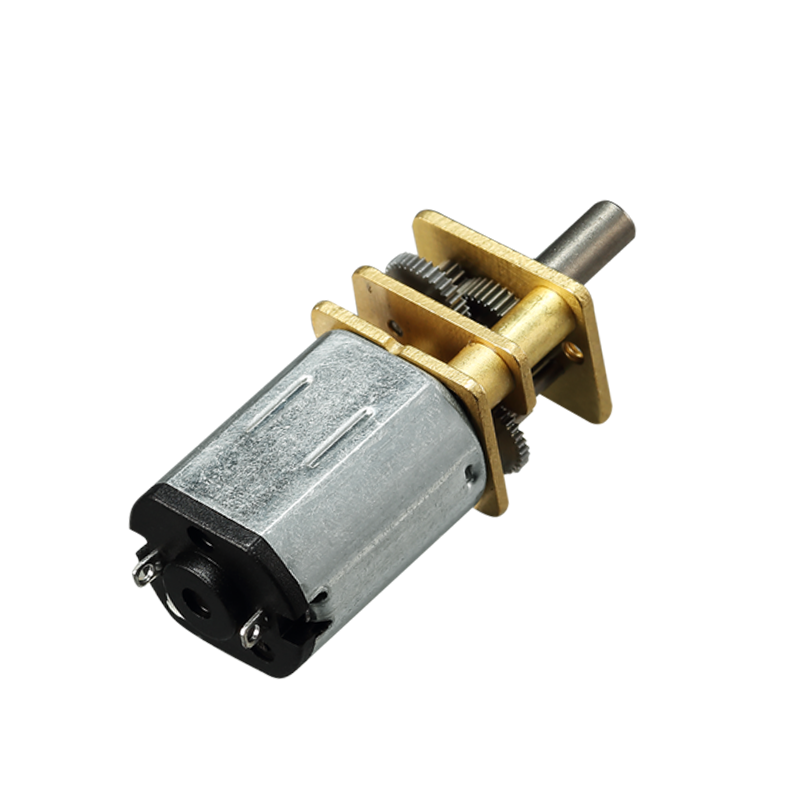

GM12-N20VA DC 6v mini metal N20 gear motor with encoder

Main Features

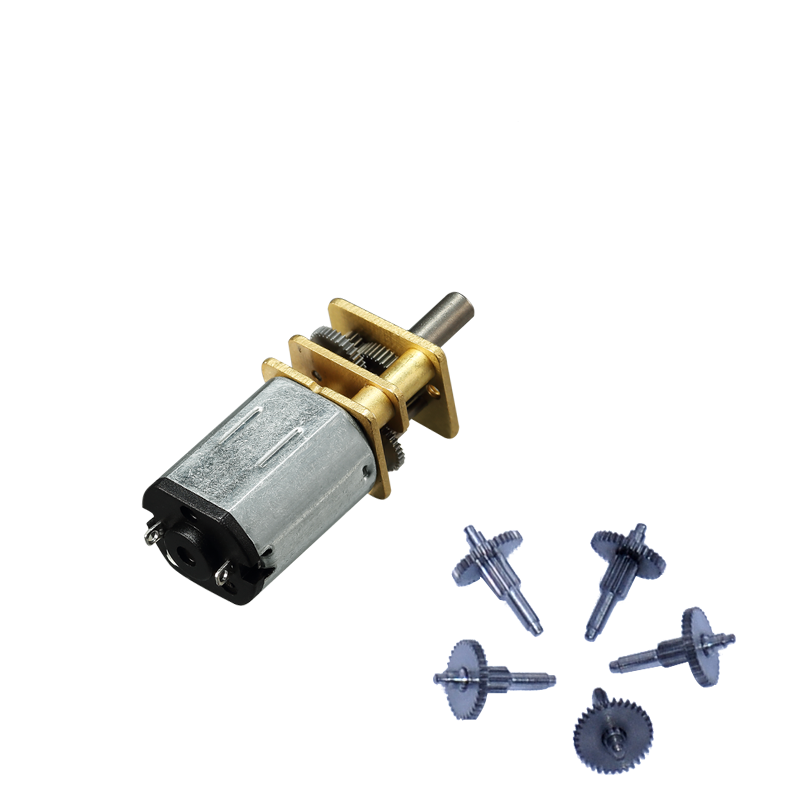

12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.1Nm torque and more reliable
Suitable to small diameter, low noise and big torque application

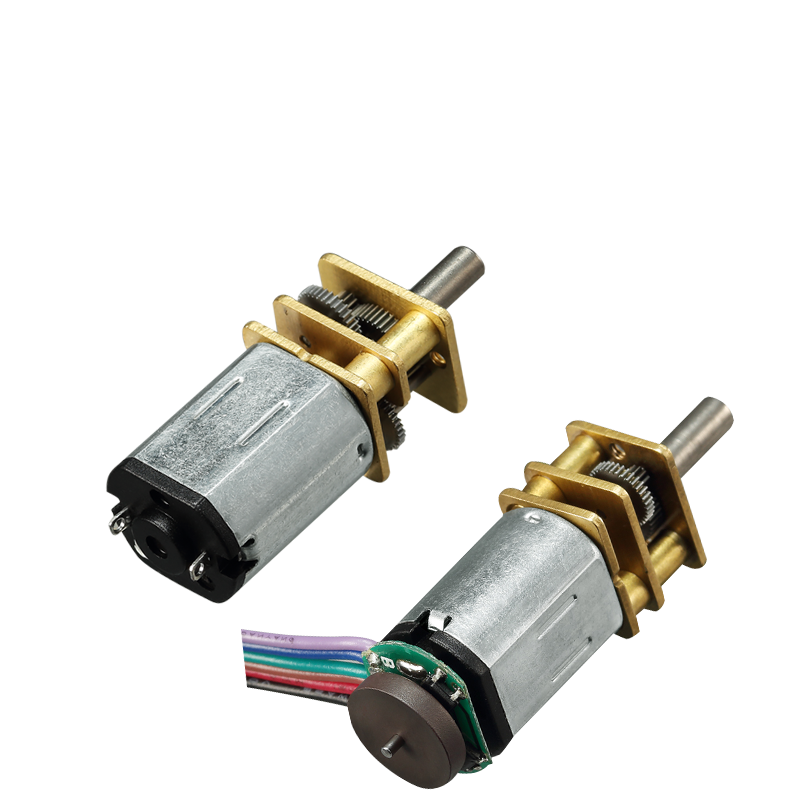

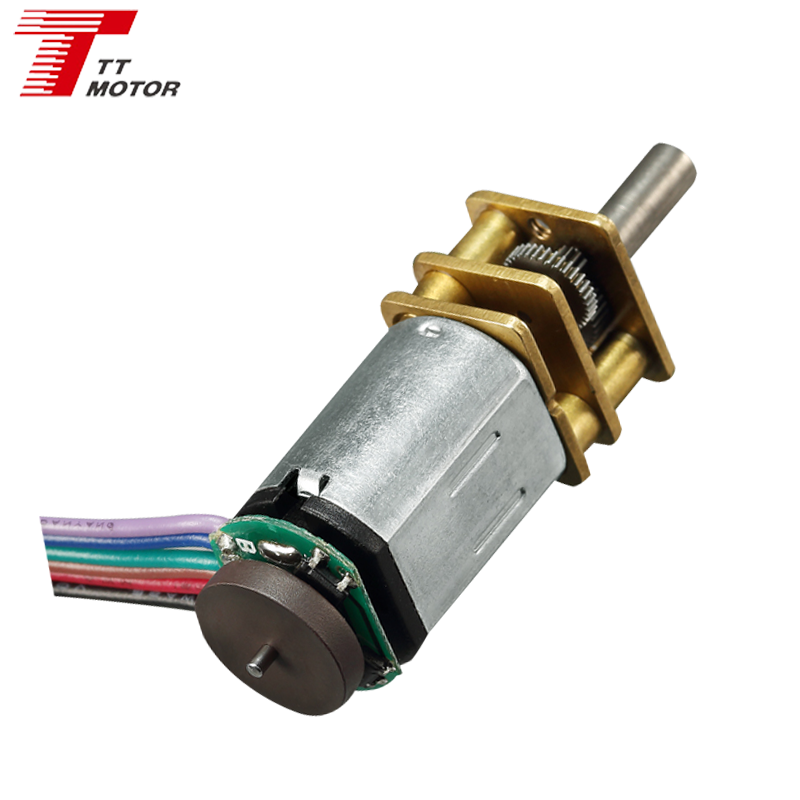

DC Gear motors can match encoder, 3ppr
Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000

Model Specifications: GM12-N20VA

Model	Rated Voltage	Rated Speed	Output Power	No-load Speed	Rated Torque	Stall Torque	No-load Current	Rated Current	Stall Current
TFF-N20VA-13110	2.4V DC	12000 r/min	0.31W	14800 r/min	2.5 g.cm	13 g.cm	60mA	200mA	1.20A
TFF-N20VA-09220	5V DC	12000 r/min	0.31W	14800 r/min	2.5 g.cm	13 g.cm	30mA	120mA	0.52A
TFF-N20VA-05430	12V DC	12500 r/min	0.35W	16000 r/min	3.0 g.cm	13 g.cm	15mA	60mA	0.25A

Reduction Ratio Specifications

GM12-N20VA-13110-xxx

Parameter	10	30	50	100	150	210	250	298	380
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load Speed (rpm)	1450	470	285	145	96	69	58	50	38
Rated Speed (rpm)	1200	400	240	120	80	57	48	40	31
Rated Torque (kg.cm)	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. Momentary Tolerance Torque (kg.cm)	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-09220-xxx

Parameter	10	30	50	100	150	210	250	298	380
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load Speed (rpm)	1450	470	285	145	96	69	58	50	38
Rated Speed (rpm)	1200	400	240	120	80	57	48	40	31
Rated Torque (kg.cm)	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. Momentary Tolerance Torque (kg.cm)	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-05430-xxx

Parameter	10	30	50	100	150	210	250	298	380
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load Speed (rpm)	1550	530	310	160	110	78	60	55	43
Rated Speed (rpm)	1100	400	250	125	83	60	50	42	33
Rated Torque (kg.cm)	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5
Max. Momentary Tolerance Torque (kg.cm)	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Other Applications

Business Machines	Camera and Optical	Lawn and Garden
Vending Machines	Video	Lawn Mowers
Printers	Cameras	Snow Blowers
ATM	Projectors	Trimmers
Copiers and Scanners	-	Leaf Blowers

Certifications

ISO9001 SGS National high-tech enterprises

Company Overview

We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners. We look forward to being able to work together with you in the near future.

Our Customers

NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard packing

Shipping Time

DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post: Depends on destination country
Sea: Depends on destination country

Customer Feedback

"Excellent quality, better price, good service, and on time delivery."

Frequently Asked Questions (FAQ)

Q How to place an order?

Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

Q How about sample orders?

Samples are available. Please inquire for further details. Once the sample fee is charged, it will be refunded when a formal order is placed.

Q Which shipping ways are available?

DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight are all available options. Other shipping ways can be accommodated upon request.

Q How long is the production and shipping?

Delivery and production time depend on the quantity ordered. Typically, mass production takes 15-25 working days.

Q What should I do if my package has missing products?

Please contact our support team, and we will verify the shipment and confirm your order against the package contents.

Q How to confirm the payment?

We accept payment via T/T and PayPal. Other payment methods can also be discussed and accepted. A 30-50% deposit option is available, with the remaining balance to be paid before shipping.
