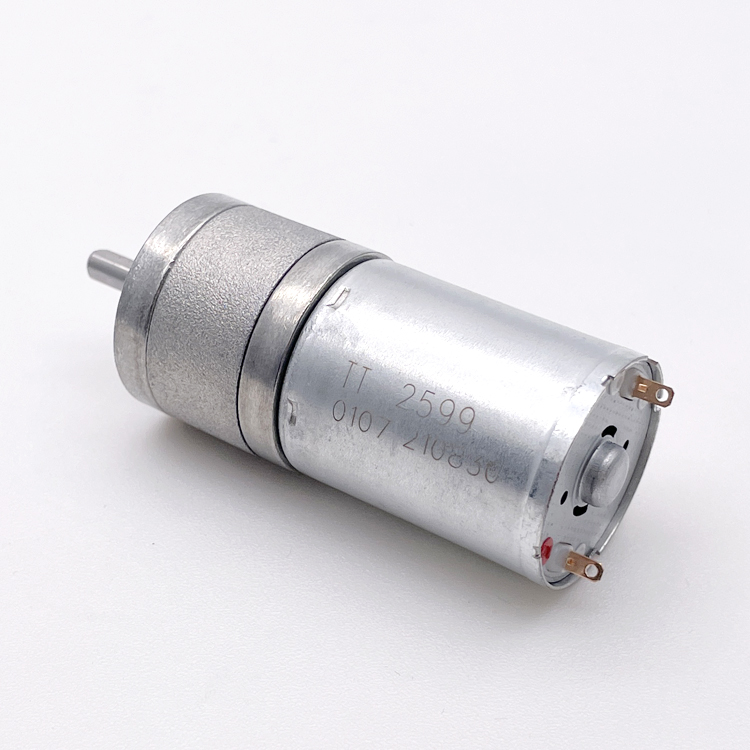

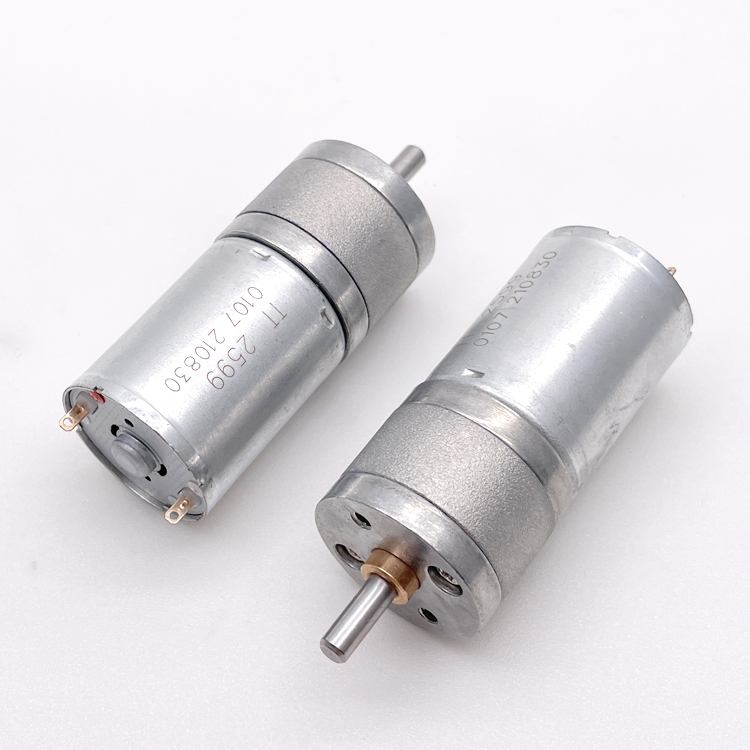

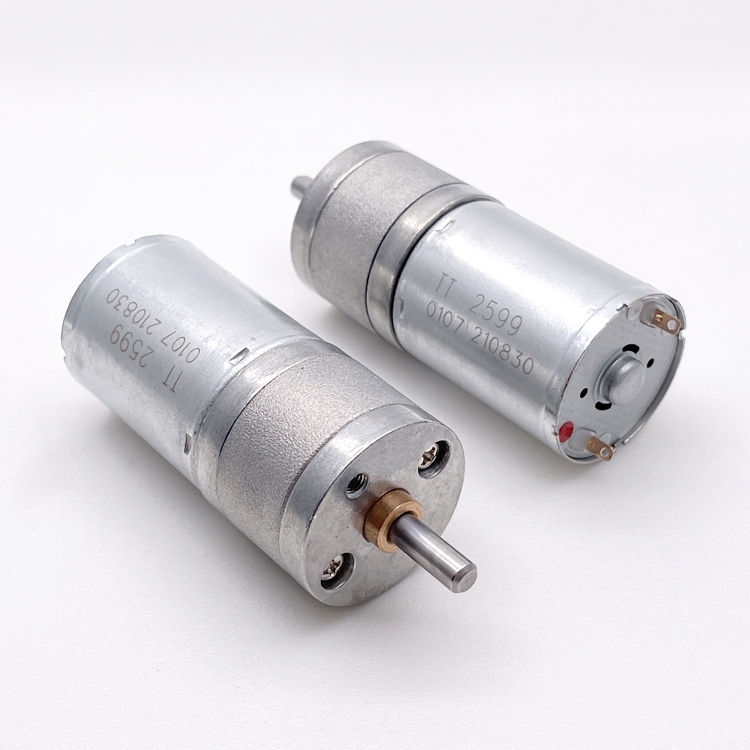

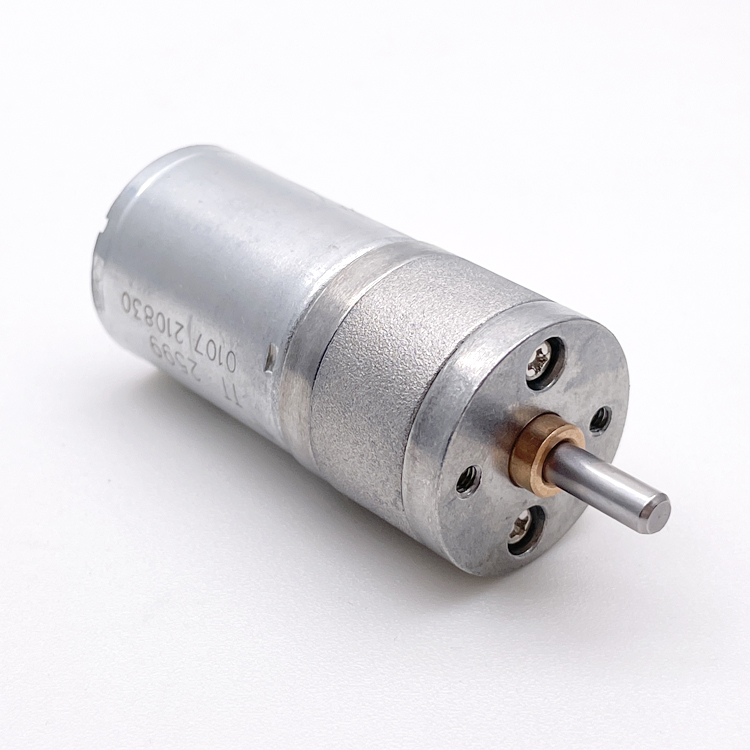

GM25-370CA Electric 12v Encoder Dc Gear Motor for Automatic Toys

GM25-370CA Electric 12V Encoder DC Gear Motor for Automatic Toys

25mm Gearbox 12V DC Motor Encoder Compatible High Torque

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

Main Features

25mm gearbox plus 370 & 320 permanent magnet DC motor
Small size DC gear motor with low speed and big torque
25mm gear motor provides 0.5Nm torque and higher reliability
Suitable for small diameter, low noise, and big torque applications

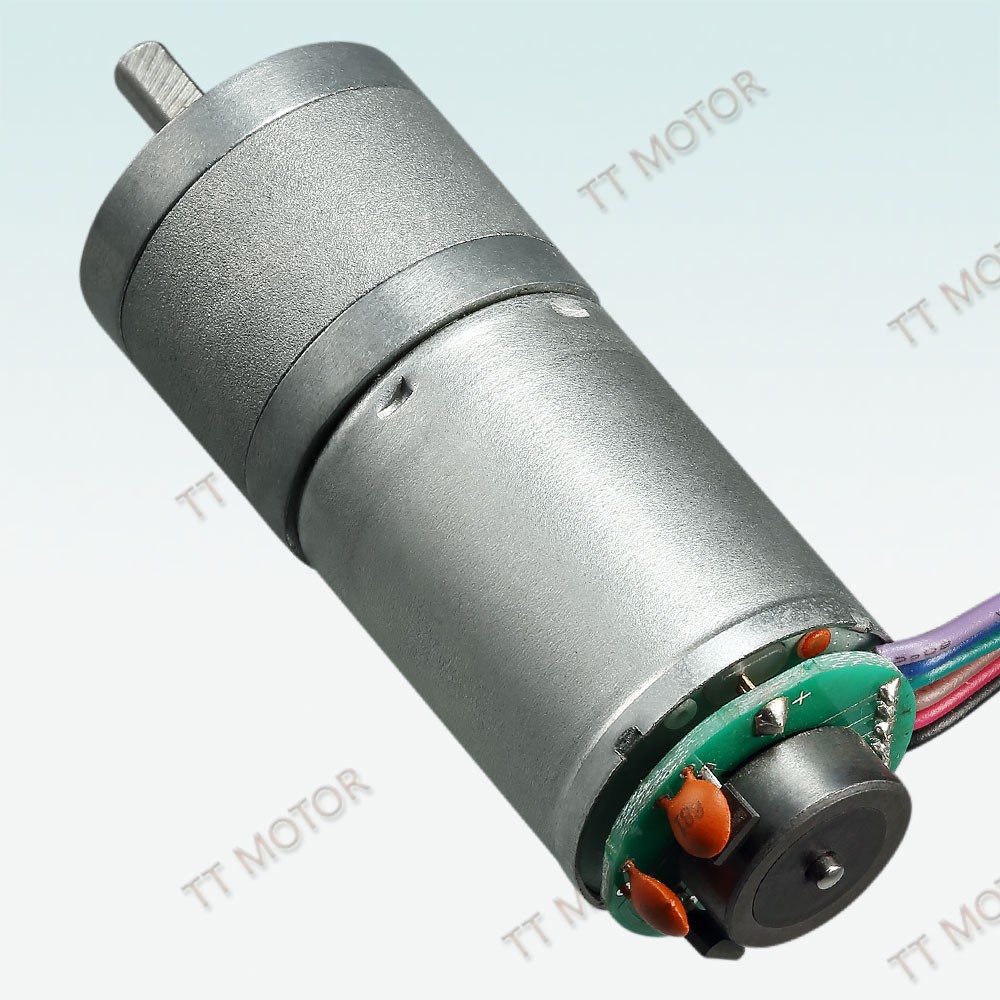

DC gear motors can match encoder, 11ppr
Reduction ratio: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

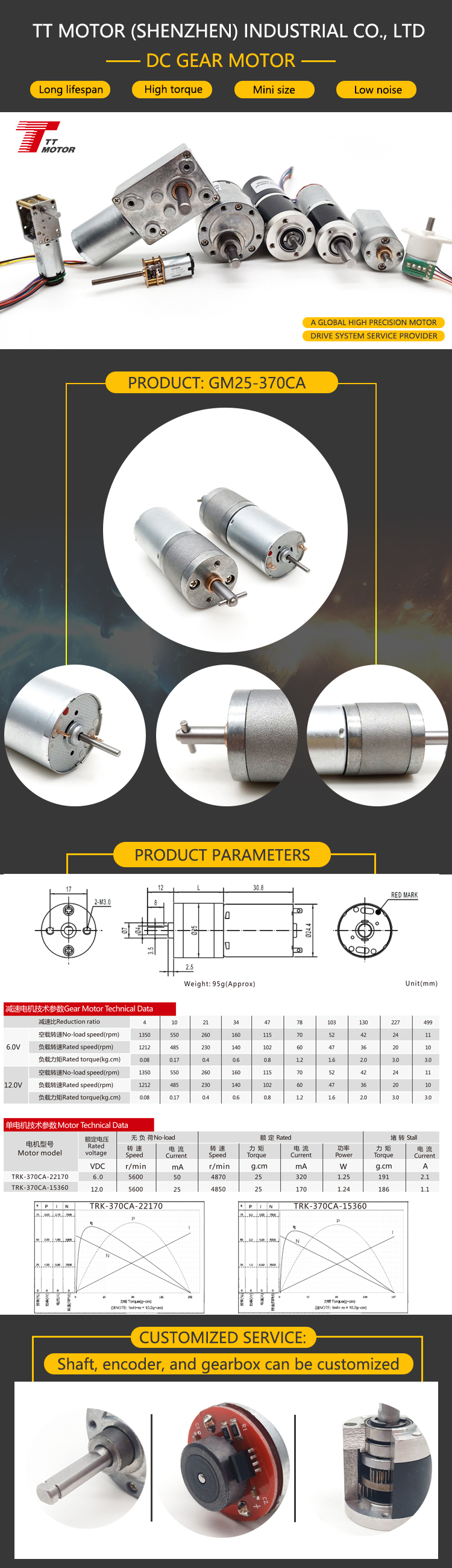

Model Configurations

Model: Motor GM25-370CA
TRK-370CA-22170	Rated voltage: 6VDC	Rated speed: 4800r/min	Output power: 1.18W
	No-load speed: 5600r/min	Rated torque: 24g.cm	Stall torque: 186g.cm
	No-load current: 50mA	Rated current: 300mA	Stall current: 2.1A
TRK-370CA-15360	Rated voltage: 12VDC	Rated speed: 4800r/min	Output power: 1.18W
	No-load speed: 5600r/min	Rated torque: 24g.cm	Stall torque: 186g.cm
	No-load current: 25mA	Rated current: 160mA	Stall current: 1.06A
TRK-370CA-12560	Rated voltage: 12VDC	Rated speed: 3000r/min	Output power: 0.62W
	No-load speed: 3700r/min	Rated torque: 20g.cm	Stall torque: 125g.cm
	No-load current: 20mA	Rated current: 90mA	Stall current: 0.6A

GM25-370CA-22170-xxx

Reduction ratio	4	10	21	34	47	78	103	130	227
Length mm	17	19	19	21	21	23	23	25	25
No-load speed rpm	1280	510	245	150	110	68	50	42	24
Rated speed rpm	1200	480	230	137	102	62	47	37	21
Rated torque kg.cm	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max.momentary tolerance torque kg.cm	0.45	1.1	2.3	3.9	5.2	10	10	10	10

GM25-370CA-15360-xxx

Reduction ratio	4	10	21	34	47	78	103	130	227
Length mm	17	19	19	21	21	23	23	25	25
No-load speed rpm	1280	510	245	150	110	68	50	42	24
Rated speed rpm	1200	480	230	137	102	62	47	37	21
Rated torque kg.cm	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max.momentary tolerance torque kg.cm	0.45	1.1	2.3	3.9	5.2	10	10	10	10

GM25-370CA-12560-xxx

Reduction ratio	4	10	21	34	47	78	103	130	478
Length mm	17	19	19	21	21	23	23	25	27
No-load speed rpm	850	340	165	100	75	48	34	27	7.5
Rated speed rpm	750	300	145	86	64	38	29	23	6.3
Rated torque kg.cm	0.05	0.12	0.26	0.4	0.6	0.9	1.2	1.4	2.5
Max.momentary tolerance torque kg.cm	0.3	0.75	1.5	2.6	3.5	10	10	10	10

Packaging & Shipping

Model	Case Pack (pcs)	Carton Size	Carton Gross Weight
GM12-N20VA	840	41.5 * 34.5 * 18.5 CM	10.5 kg

Detailed Application Fields

Typical Application:

Business Machines: ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage: Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk.
Camera and Optical: Video, Cameras, Projectors.
Medical: Urine Analyzer, Blood Sugar Analyzer, Injector.
Lawn and Garden: Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.

Certifications

Customer Reviews

Our Customers

Manufacturer Profile

Specializing in micro motors, gear motors and their respective parts since 2000.

Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.

By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in sales overseas by seeking global partners.

Frequently Asked Questions (FAQ)

What are the main options for the rated voltage of the GM25-370CA motor?

The motor is available in 6VDC and 12VDC rated configurations to accommodate different applications.

Does this DC gear motor support encoder integration?

Yes, the GM25-370CA DC gear motor can be matched with an encoder providing a resolution of 11 PPR (pulses per revolution).

What range of reduction ratios does this motor offer?

The motor supports a wide selection of reduction ratios including 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, and 499.

What is the torque capability of this 25mm gear motor?

The 25mm gearbox configuration provides 0.5Nm of torque, making it ideal for compact applications requiring low speed and high torque output.

What are the typical application fields for this gear motor?

It is widely used in automatic door operators, automated energy-saving bath units, electrical controlled valves, oxygen machines, optical devices, cordless power tools, and automatic toys.

What are the physical dimensions of the gearbox?

The gearbox diameter is 25mm, and the overall length varies from 17mm to 27mm depending on the reduction ratio configuration.
