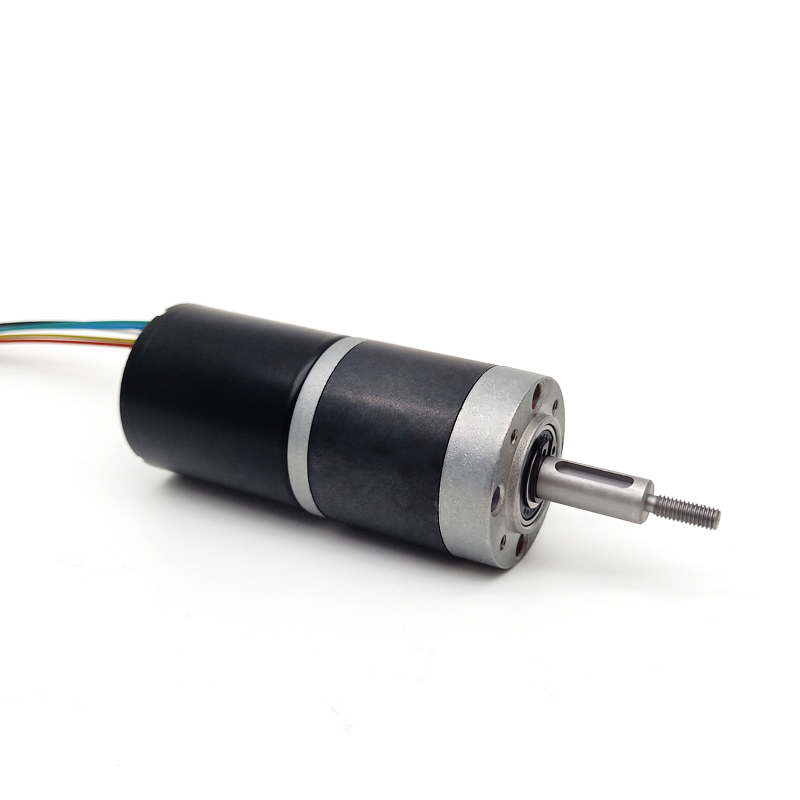

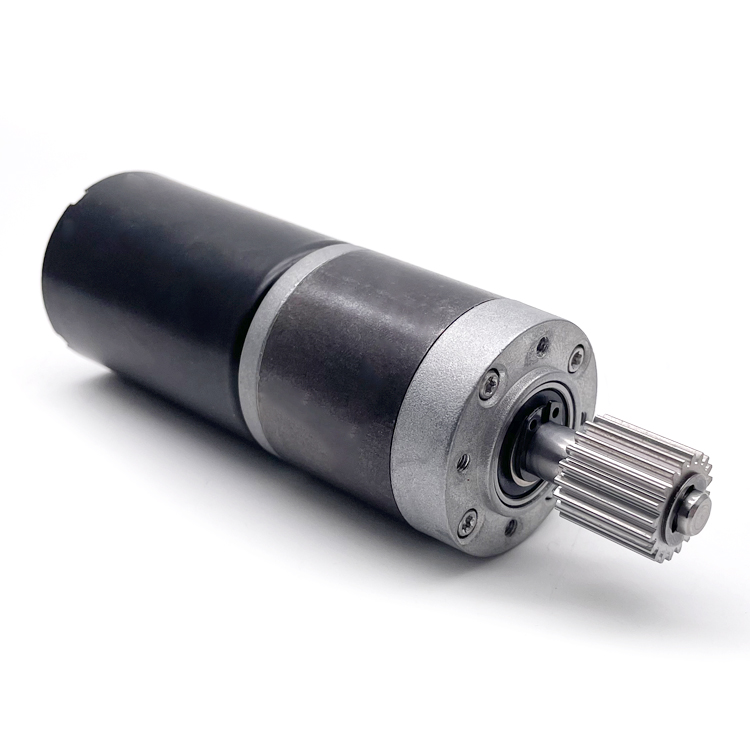

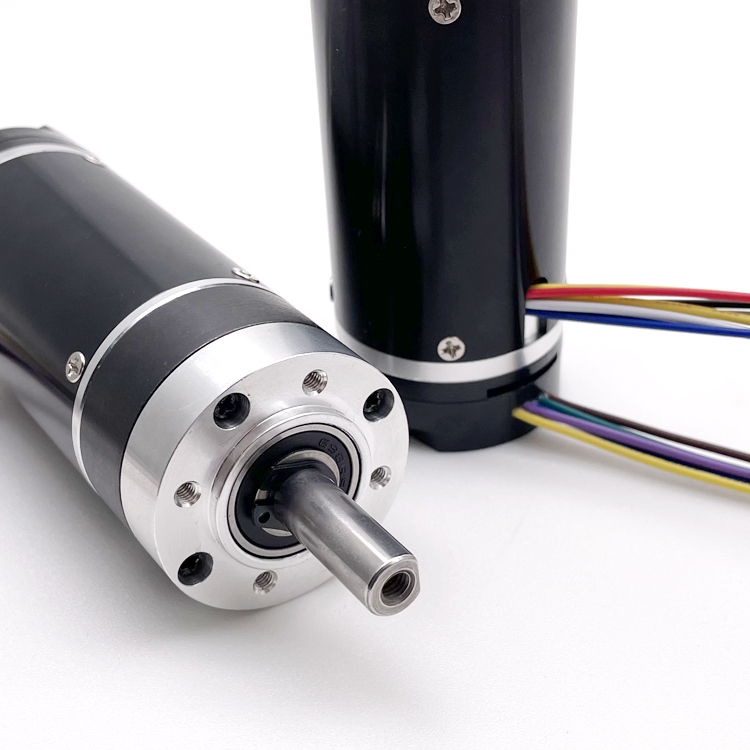

High Torque Low RPM 12V 24V Brushless DC Gear Motor
Main Features
- 36mm Planetary reducer plus TEC3650 & 3640 brushless motor
- Small size dc gear motor with low speed and big torque
- 36mm gear motor provide 3.0Nm torque max and more reliable
- Suitable to small diameter, low noise and big torque application
- Reduction ratio: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720

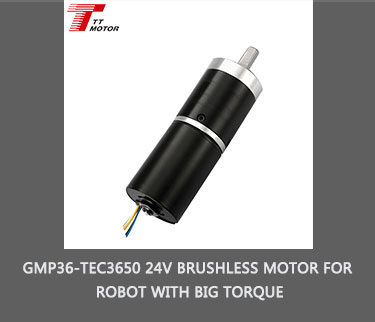

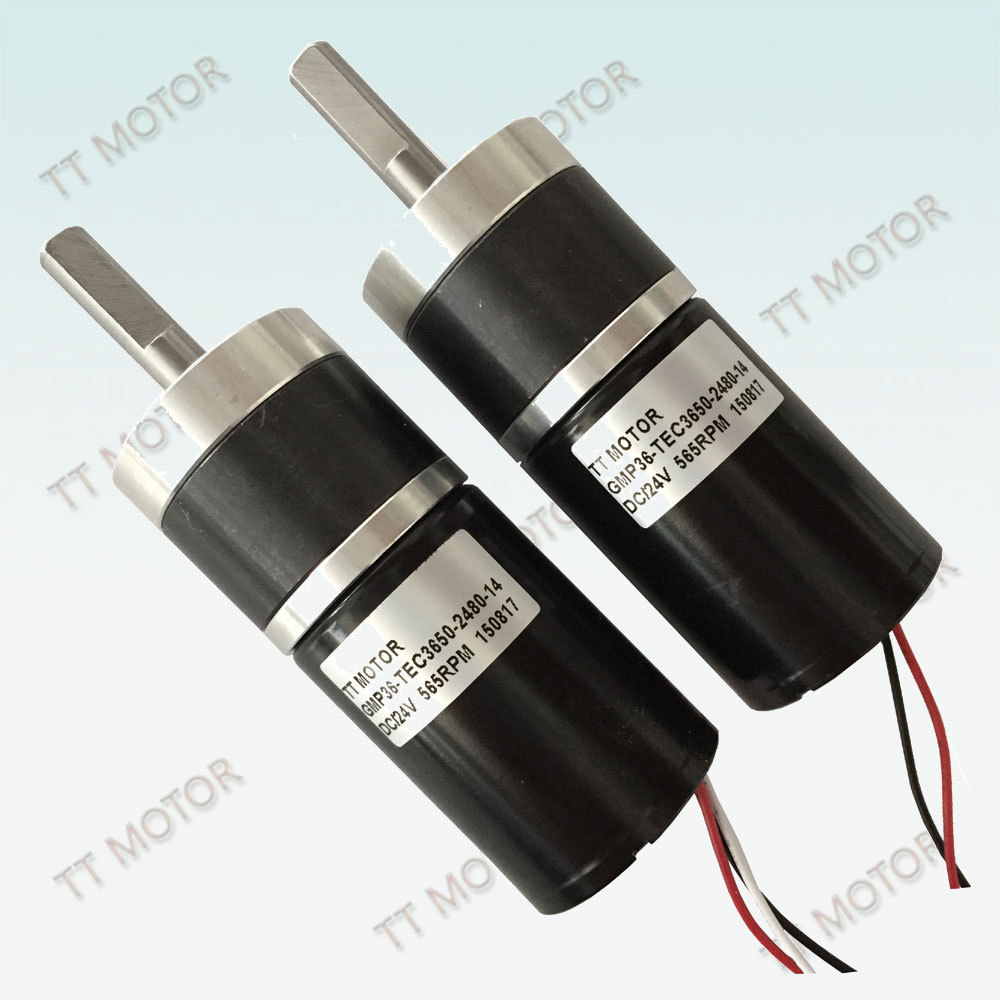

Model Specifications: GMP36-TEC3650
| Model: GMP36-TEC3650 |
| TEC3650-2465 |
Rated voltage: 24VDC |
Rated speed: 5400r/min |
Output power: 11.5W |
| No-load speed: 6500r/min |
Rated torque: 200g.cm |
Stall torque: 1150g.cm |
| No-load current: 200mA |
Rated current: 1000mA |
Stall current: 2.0A |
| TEC3650-2440 |
Rated voltage: 24VDC |
Rated speed: 3200r/min |
Output power: 6.6W |
| No-load speed: 4000r/min |
Rated torque: 200g.cm |
Stall torque: 1000g.cm |
| No-load current: 120mA |
Rated current: 600mA |
Stall current: 2.0A |
| TEC3650-1245 |
Rated voltage: 12VDC |
Rated speed: 3500r/min |
Output power: 8.3W |
| No-load speed: 4500r/min |
Rated torque: 230g.cm |
Stall torque: 820g.cm |
| No-load current: 150mA |
Rated current: 880mA |
Stall current: 2.5A |

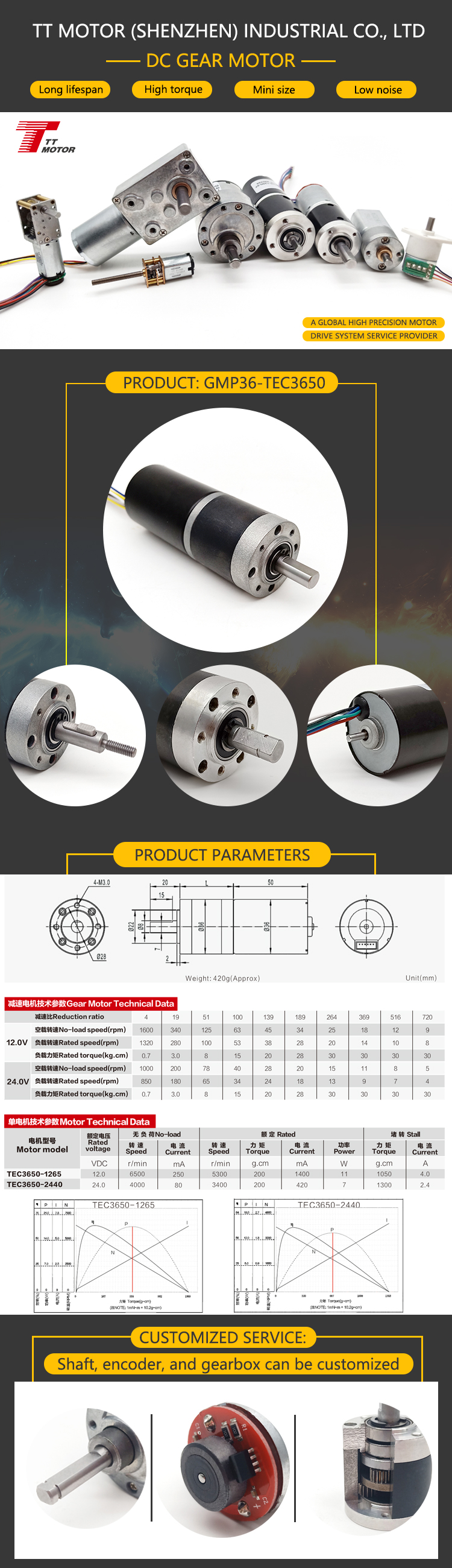

Reduction Ratio Performance Data
Model: GMP36-TEC3650-2440
| Reduction ratio |
4 |
19 |
51 |
100 |
139 |
189 |
264 |
369 |
516 |
| Length mm |
26 |
33.5 |
40.5 |
40.5 |
40.5 |
47.5 |
47.5 |
47.5 |
47.5 |
| No-load speed rpm |
950 |
200 |
75 |
40 |
28 |
20 |
15 |
10 |
7.5 |
| Rated speed rpm |
750 |
160 |
60 |
30 |
22 |
16 |
12 |
8 |
6 |
| Rated torque kg.cm |
0.6 |
2.7 |
6.0 |
12 |
16.6 |
22.5 |
30 |
30 |
30 |
| Max. momentary tolerance torque kg.cm |
3.2 |
13 |
31 |
60 |
70 |
70 |
70 |
70 |
70 |
Model: GMP36-TEC3650-2465
| Reduction ratio |
4 |
19 |
51 |
100 |
139 |
189 |
264 |
369 |
516 |
| Length mm |
26 |
33.5 |
40.5 |
40.5 |
40.5 |
47.5 |
47.5 |
47.5 |
47.5 |
| No-load speed rpm |
1600 |
340 |
125 |
65 |
45 |
33 |
23 |
17 |
12 |
| Rated speed rpm |
1300 |
280 |
100 |
53 |
38 |
28 |
20 |
14.5 |
12 |
| Rated torque kg.cm |
0.6 |
2.7 |
6.0 |
12 |
16.6 |
22.5 |
30 |
30 |
30 |
| Max. momentary tolerance torque kg.cm |
3.7 |
15 |
35 |
69 |
70 |
70 |
70 |
70 |
70 |
Model: GMP36-TEC3650-1245-x
| Reduction ratio |
4 |
19 |
51 |
100 |
139 |
189 |
264 |
369 |
516 |
| Length mm |
26 |
33.5 |
40.5 |
40.5 |
40.5 |
47.5 |
47.5 |
47.5 |
47.5 |
| No-load speed rpm |
1050 |
230 |
85 |
44 |
32 |
23 |
17 |
12 |
9 |
| Rated speed rpm |
875 |
185 |
68 |
35 |
25 |
18 |
13 |
10 |
57 |
| Rated torque kg.cm |
0.7 |
3.0 |
7.0 |
14 |
19 |
24 |
30 |
30 |
30 |
| Max. momentary tolerance torque kg.cm |
2.6 |
11 |
25 |
50 |
70 |
70 |
70 |
70 |
70 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
| Others application |
| Business Machines |
Vending Machines |
Printers |
ATM |
Copiers and Scanners |
| Camera and Optical |
Video |
Cameras |
Projectors |
- |
| Lawn and Garden |
Lawn Mowers |
Snow Blowers |
Trimmers |
Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
