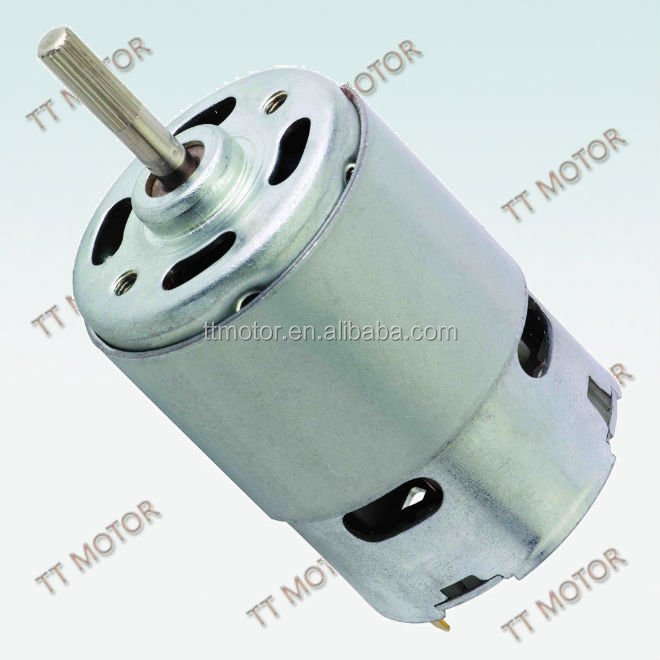

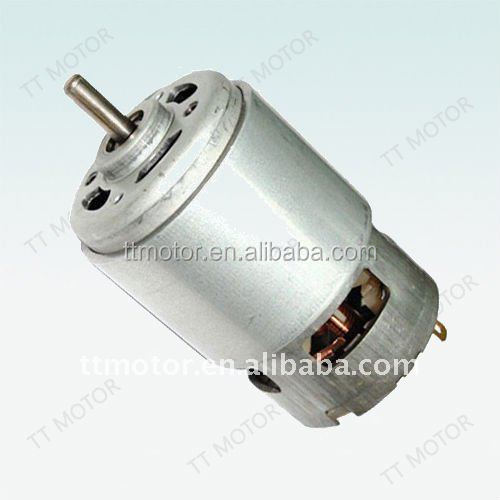

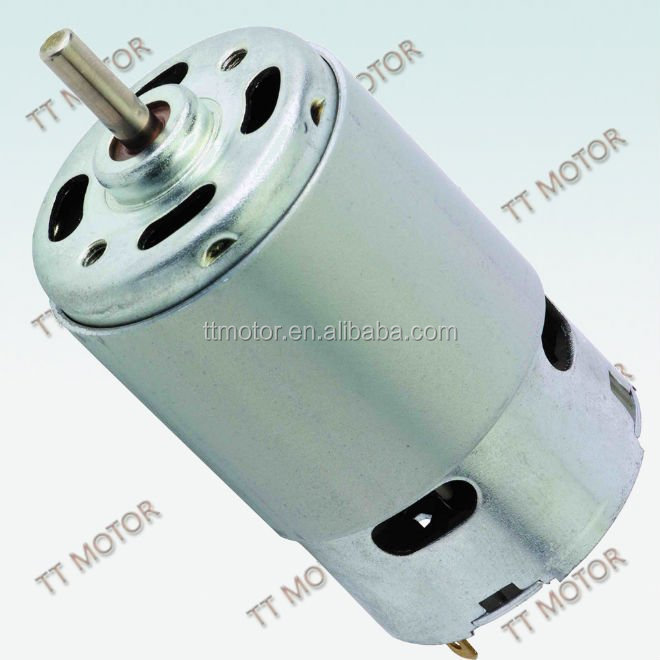

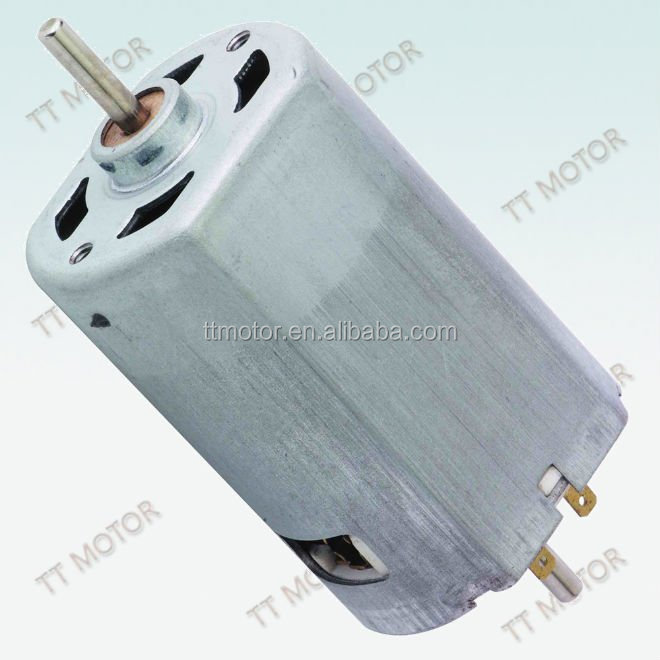

Dynetic Motor
Dynetic Motor
120V
18000 RPM
3512 g.cm
Low current, noise, no spark, no vibration
Ride-on Toy, Grass trimmer, Air Compressor, Drill
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE V |
NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |||
| TRS-550PM | 35100 | 3.0-18.0 | 12.0 | 5200 | 0.25 | 4330 | 1.60 | 29.41 | 300 | 13.3 | 176.47 | 1800 | 8.32 |
| 6530 | 6.0-12.0 | 12.0 | 18000 | 1.30 | 16100 | 7.15 | 41.18 | 420 | 69.0 | 344.31 | 3512 | 52.0 | |
This motor is typically applied in ride-on toys, grass trimmers, air compressors, and drills due to its high speed and torque capabilities.
The motor supports an operating voltage range of 3.0V to 18.0V (for the 35100 model variant) and 6.0V to 12.0V (for the 6530 model variant) with a nominal voltage of 12.0V, but can be configured up to 120V depending on project specifications.
It features a low operating current, low noise design, no spark generation during use, and minimal vibration, making it reliable for precision tools and consumer products.
The maximum stall torque of the TRS-550PM (6530 variant) reaches 3512 g.cm (344.31 mN.m) under stall conditions with a stall current of 52.0 A.
Under no-load conditions, the motor can reach rotation speeds of up to 18,000 RPM at a nominal voltage of 12.0V.
