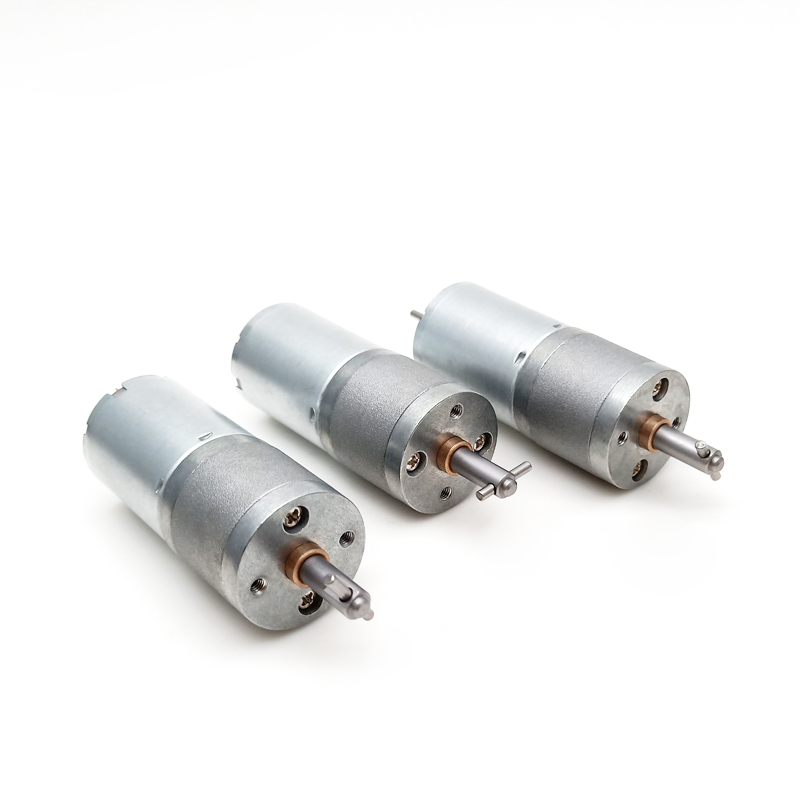

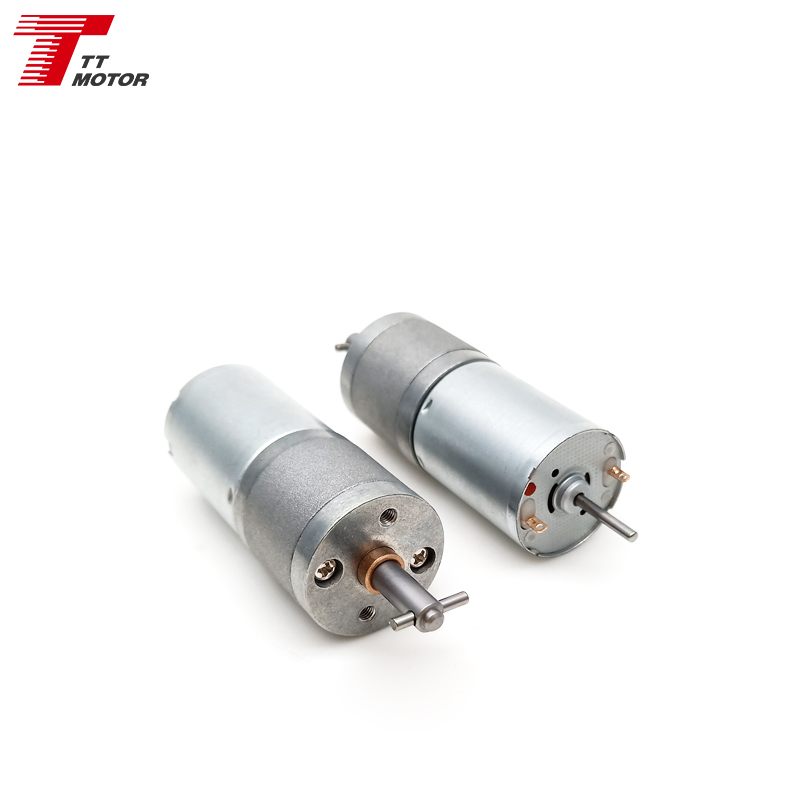

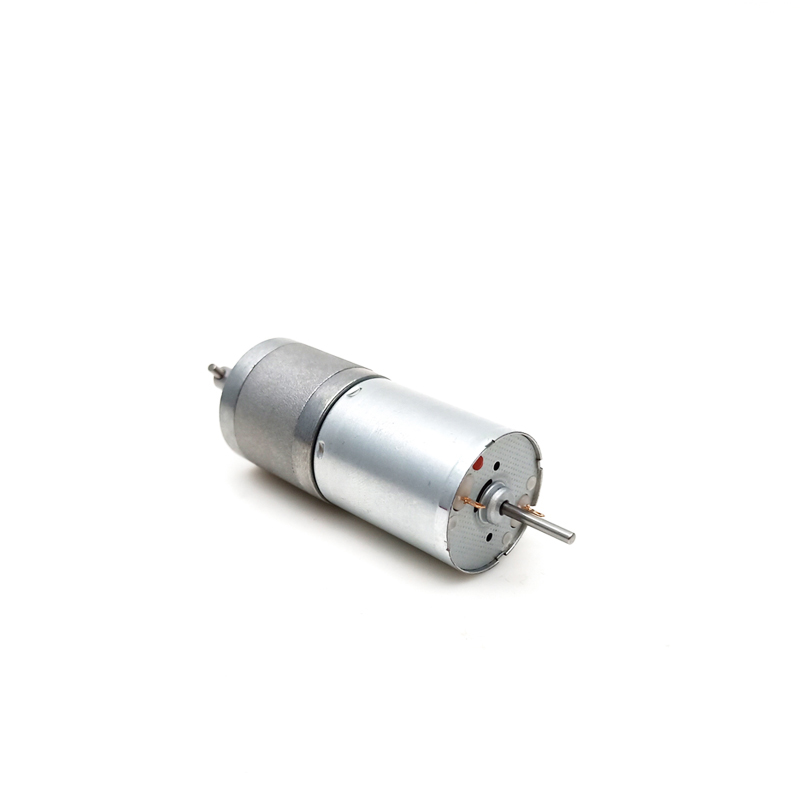

GM25-370CA 6v 12v dc electric gear motor for TV broadcast satellite antenna
Product Description
Main Features

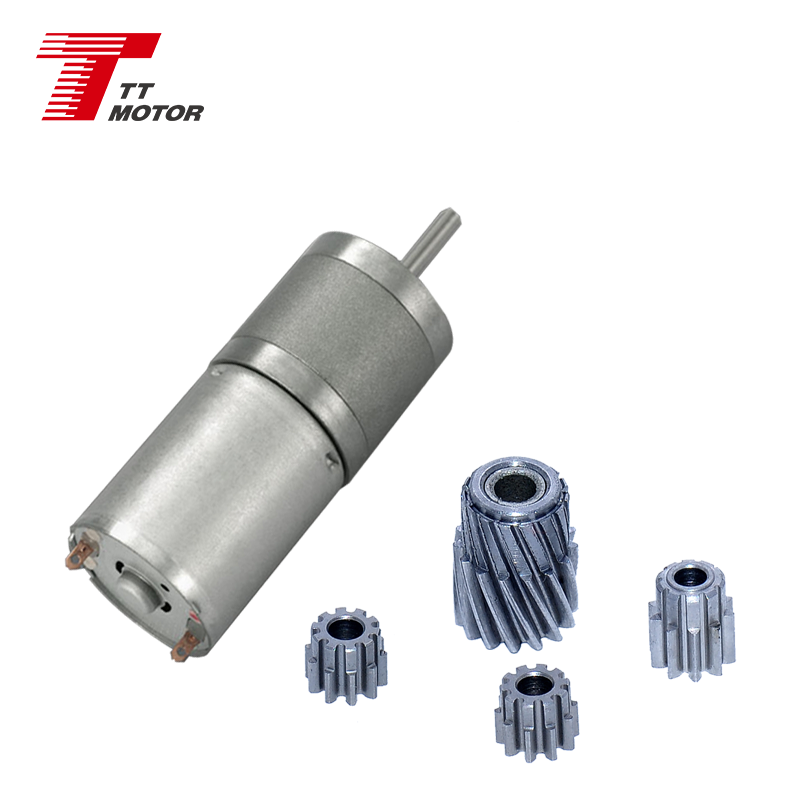

- 25mm gearbox plus 370 & 320 permanent magnet DC motor
- Small size dc gear motor with low speed and big torque
- 25mm gear motor provide 0.5Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application

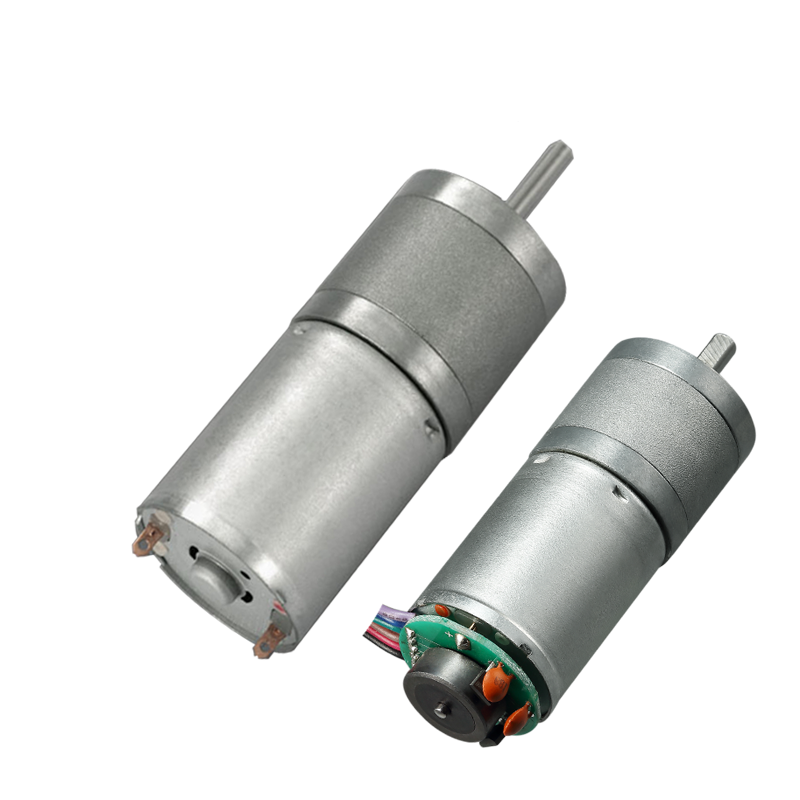

- DC gear motors can match encoder, 11ppr
- Reduction ratio: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

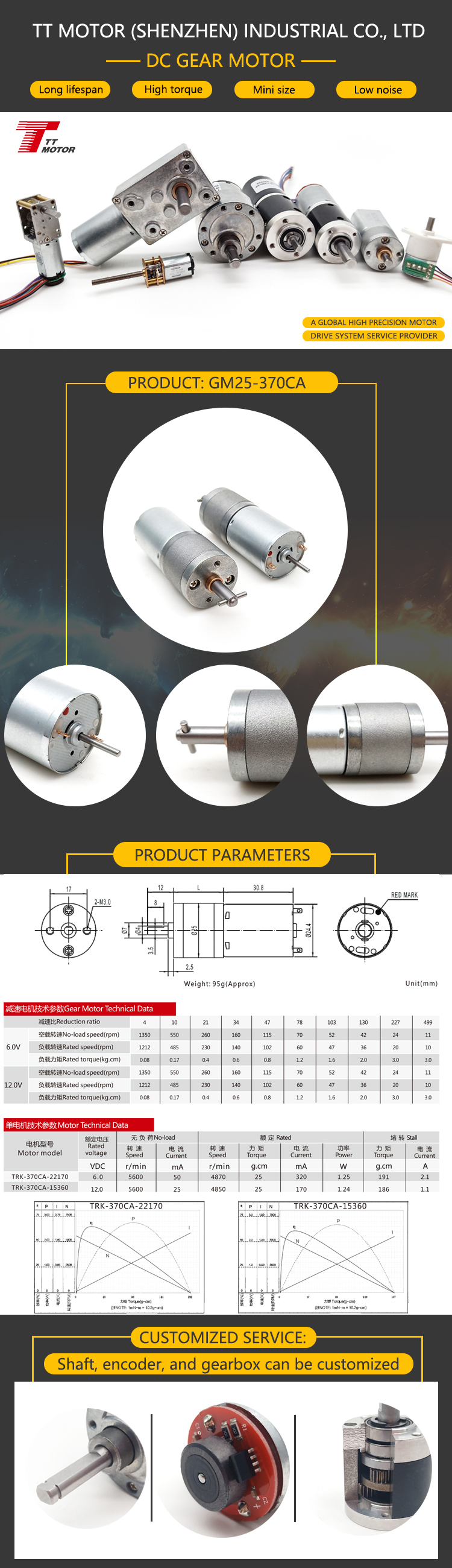

Technical Specifications
| Model: Motor GM25-370CA |
| TRK-370CA-22170 |
Rated voltage: 6VDC |
Rated speed: 4800r/min |
Output power: 1.18W |
| No-load speed: 5600r/min |
Rated torque: 24g.cm |
Stall torque: 186g.cm |
| No-load current: 50mA |
Rated current: 300mA |
Stall current: 2.1A |
| TRK-370CA-15360 |
Rated voltage: 12VDC |
Rated speed: 4800r/min |
Output power: 1.18W |
| No-load speed: 5600r/min |
Rated torque: 24g.cm |
Stall torque: 186g.cm |
| No-load current: 25mA |
Rated current: 160mA |
Stall current: 1.06A |
| TRK-370CA-12560 |
Rated voltage: 12VDC |
Rated speed: 3000r/min |
Output power: 0.62W |
| No-load speed: 3700r/min |
Rated torque: 20g.cm |
Stall torque: 125g.cm |
| No-load current: 20mA |
Rated current: 90mA |
Stall current: 0.6A |
GM25-370CA-22170-xxx Parameters
| Reduction ratio |
4 |
10 |
21 |
34 |
47 |
78 |
103 |
130 |
227 |
| Length mm |
17 |
19 |
19 |
21 |
21 |
23 |
23 |
25 |
25 |
| No-load speed rpm |
1280 |
510 |
245 |
150 |
110 |
68 |
50 |
42 |
24 |
| Rated speed rpm |
1200 |
480 |
230 |
137 |
102 |
62 |
47 |
37 |
21 |
| Rated torque kg.cm |
0.06 |
0.15 |
0.3 |
0.5 |
0.7 |
1.1 |
1.5 |
1.7 |
2.7 |
| Max.momentary tolerance torque kg.cm |
0.45 |
1.1 |
2.3 |
3.9 |
5.2 |
10 |
10 |
10 |
10 |
GM25-370CA-15360-xxx Parameters
| Reduction ratio |
4 |
10 |
21 |
34 |
47 |
78 |
103 |
130 |
227 |
| Length mm |
17 |
19 |
19 |
21 |
21 |
23 |
23 |
25 |
25 |
| No-load speed rpm |
1280 |
510 |
245 |
150 |
110 |
68 |
50 |
42 |
24 |
| Rated speed rpm |
1200 |
480 |
230 |
137 |
102 |
62 |
47 |
37 |
21 |
| Rated torque kg.cm |
0.06 |
0.15 |
0.3 |
0.5 |
0.7 |
1.1 |
1.5 |
1.7 |
2.7 |
| Max.momentary tolerance torque kg.cm |
0.45 |
1.1 |
2.3 |
3.9 |
5.2 |
10 |
10 |
10 |
10 |
GM25-370CA-12560-xxx Parameters
| Reduction ratio |
4 |
10 |
21 |
34 |
47 |
78 |
103 |
130 |
478 |
| Length mm |
17 |
19 |
19 |
21 |
21 |
23 |
23 |
25 |
27 |
| No-load speed rpm |
850 |
340 |
165 |
100 |
75 |
48 |
34 |
27 |
7.5 |
| Rated speed rpm |
750 |
300 |
145 |
86 |
64 |
38 |
29 |
23 |
6.3 |
| Rated torque kg.cm |
0.05 |
0.12 |
0.26 |
0.4 |
0.6 |
0.9 |
1.2 |
1.4 |
2.5 |
| Max.momentary tolerance torque kg.cm |
0.3 |
0.75 |
1.5 |
2.6 |
3.5 |
10 |
10 |
10 |
10 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications
| Category |
Applications |
| Business Machines |
Vending Machines |
Printers |
ATM |
Copiers and Scanners |
| Camera and Optical |
Video |
Cameras |
Projectors |
- |
| Lawn and Garden |
Lawn Mowers |
Snow Blowers |
Trimmers |
Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Our Customers
NIKE, FLEXTRONICS, STANLEY, etc.
