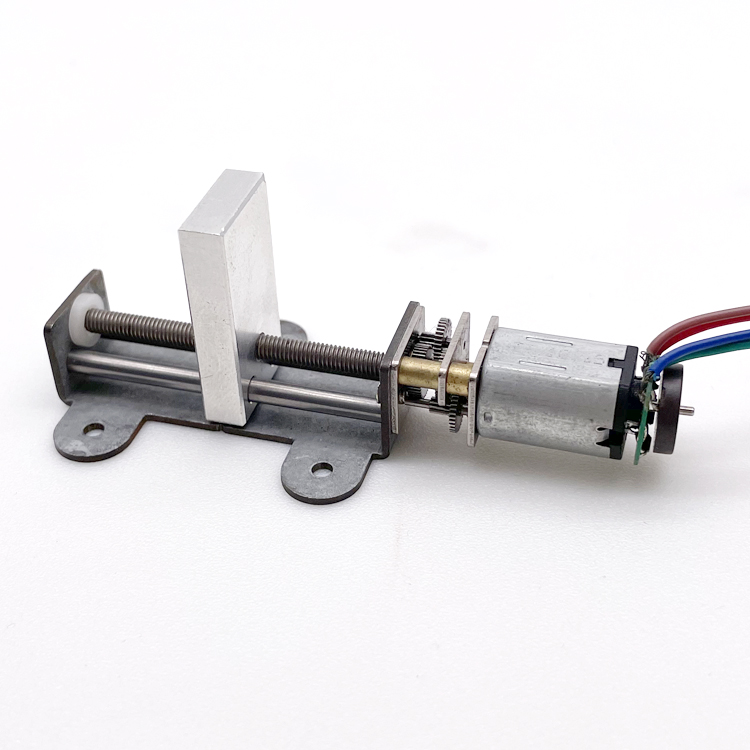

TT Motor 12v Electric Motors GM12-N20VA 1000 Ratio Spur Gear Motor for Sale

1 / 5

TT Motor 12v Electric Motors GM12-N20VA 1000 Ratio Spur Gear Motor for Sale

Send Inquiry

Product Description

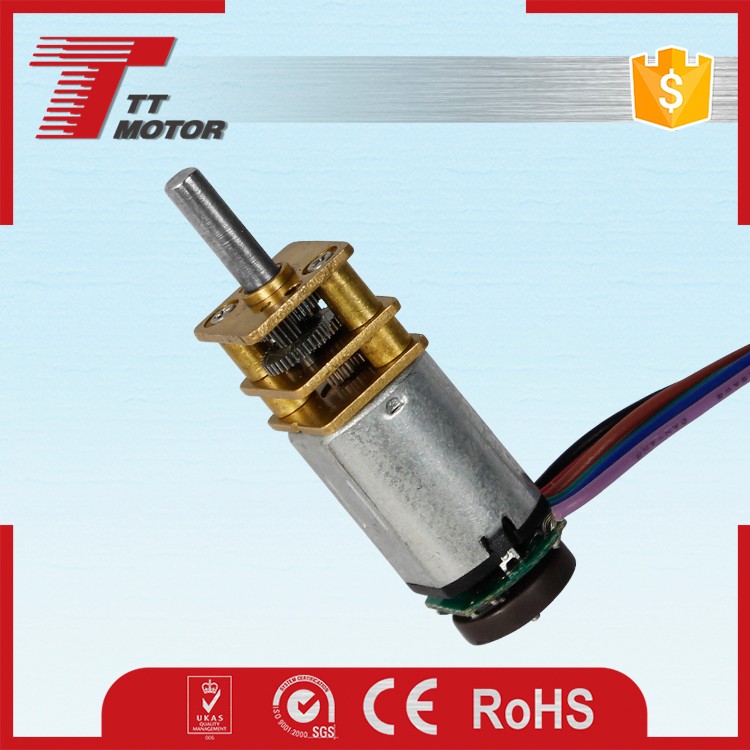

3V DC Mini Gear Motor 12mm Electric Motor with Encoder

A compact, reliable drive solution featuring a 12mm design optimized for low-speed, high-torque applications. Compatible with customized encoder configurations.

Main Features

12*10 mm gearbox integrated with N20 & N30 permanent magnet DC motors.
Compact physical footprint paired with low-speed and high-torque characteristics.
Provides up to 0.1Nm torque for enhanced application reliability.
Engineered specifically for small diameter, quiet operation, and robust torque needs.

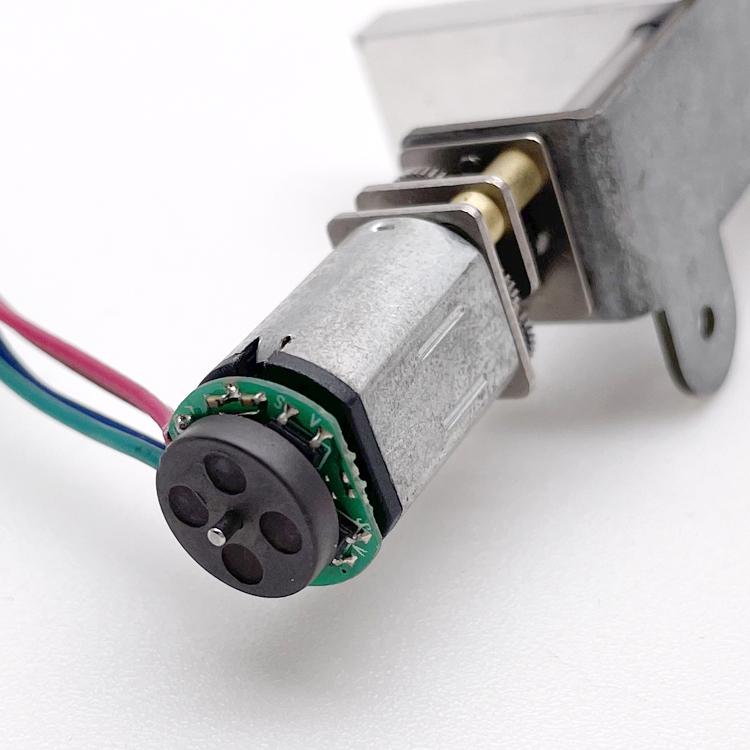

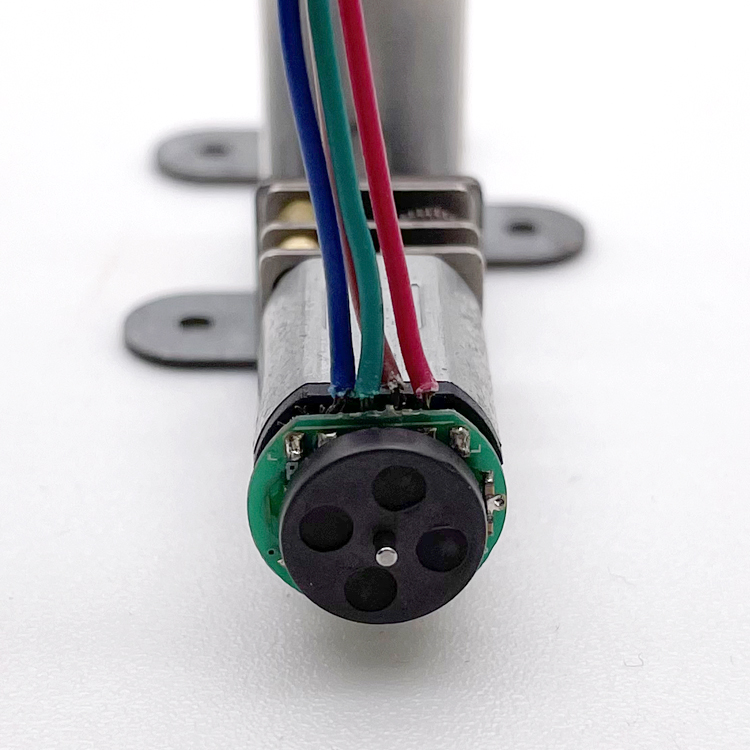

Integrates seamlessly with a 3ppr encoder.
Available Gear Reduction Ratios: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000.

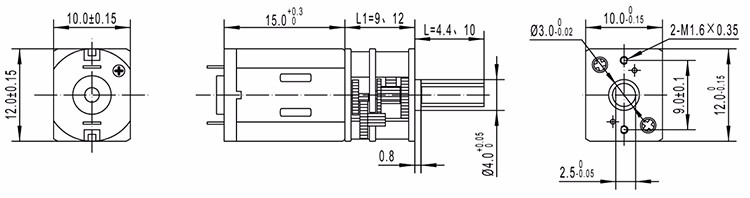

Mini Gear Motor Design and Dimension Chart

Motor Performance Parameters (Model: GM12-N20VA)

Base Model	Rated Voltage	No-Load Speed	No-Load Current	Rated Speed	Rated Torque	Rated Current	Output Power	Stall Torque	Stall Current
TFF-N20VA-13110	2.4V DC	14,800 r/min	60 mA	12,000 r/min	2.5 g.cm	200 mA	0.31 W	13 g.cm	1.20 A
TFF-N20VA-09220	5.0V DC	15,000 r/min	30 mA	12,200 r/min	2.5 g.cm	120 mA	0.31 W	13 g.cm	0.60 A
TFF-N20VA-05430	12.0V DC	16,000 r/min	15 mA	12,500 r/min	3.0 g.cm	60 mA	0.35 W	13 g.cm	0.25 A

Gearbox Specifications: GM12-N20VA-13110-EN

Parameter	Ratio 10	Ratio 30	Ratio 50	Ratio 100	Ratio 150	Ratio 210	Ratio 250	Ratio 298	Ratio 380
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load Speed (rpm)	1450	470	285	145	96	69	58	50	38
Rated Speed (rpm)	1200	400	240	120	80	57	48	40	31
Rated Torque (kg.cm)	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max Tolerance Torque (kg.cm)	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

Gearbox Specifications: GM12-N20VA-09220-EN

Parameter	Ratio 10	Ratio 30	Ratio 50	Ratio 100	Ratio 150	Ratio 210	Ratio 250	Ratio 298	Ratio 380
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load Speed (rpm)	1480	490	290	150	98	70	60	50	38
Rated Speed (rpm)	1220	405	245	122	81	57	48	40	31
Rated Torque (kg.cm)	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max Tolerance Torque (kg.cm)	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

Gearbox Specifications: GM12-N20VA-05430-EN

Parameter	Ratio 10	Ratio 30	Ratio 50	Ratio 100	Ratio 150	Ratio 210	Ratio 250	Ratio 298	Ratio 380
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load Speed (rpm)	1550	530	310	160	110	78	60	55	43
Rated Speed (rpm)	1100	400	250	125	83	60	50	42	33
Rated Torque (kg.cm)	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5
Max Tolerance Torque (kg.cm)	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5

Product Applications

This micro drive system is highly versatile and engineered for the following applications:

Automatic Door Operators

Energy Saving Bath Systems

Electrical Controlled Valves

Oxygen Concentrators

Optical Equipment

Cordless Power Tools

Automated Lighting Systems

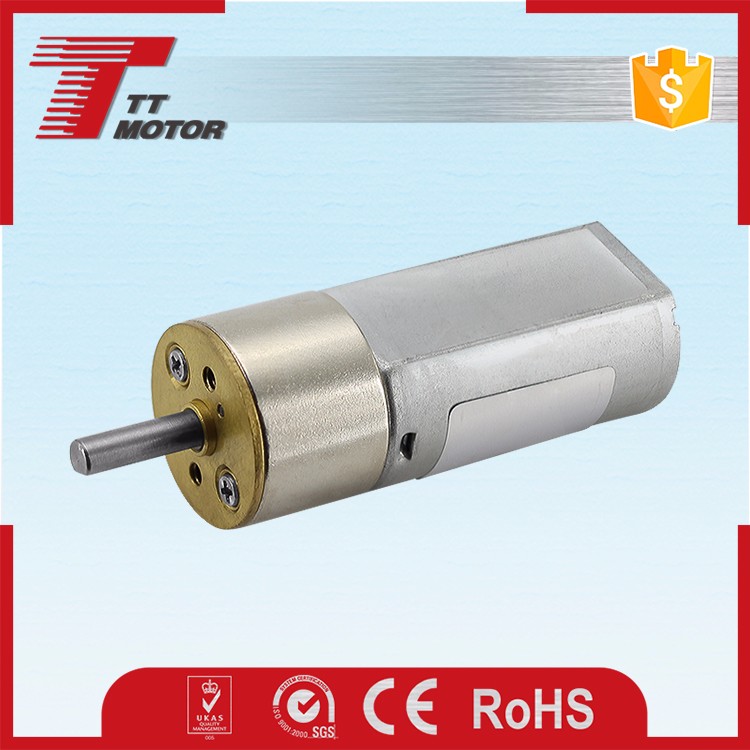

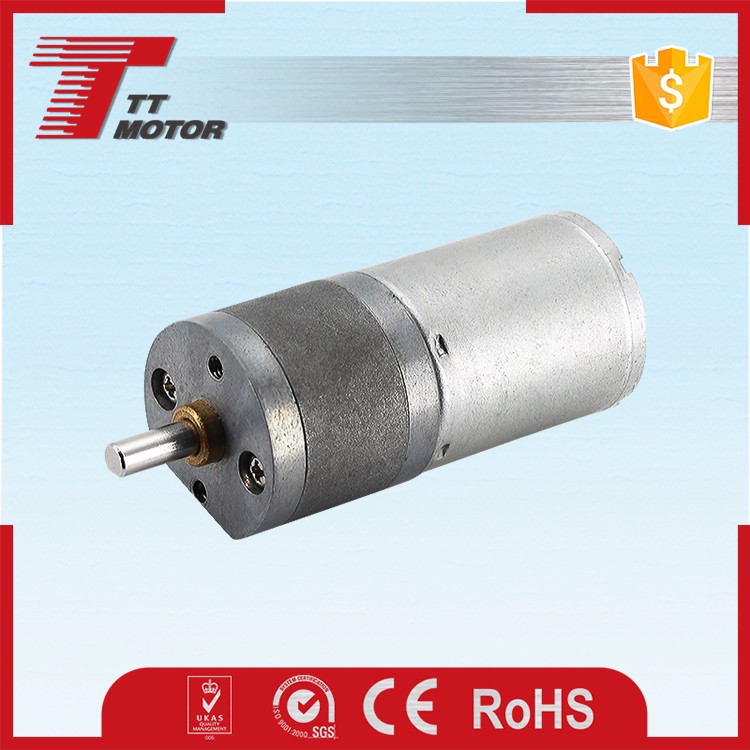

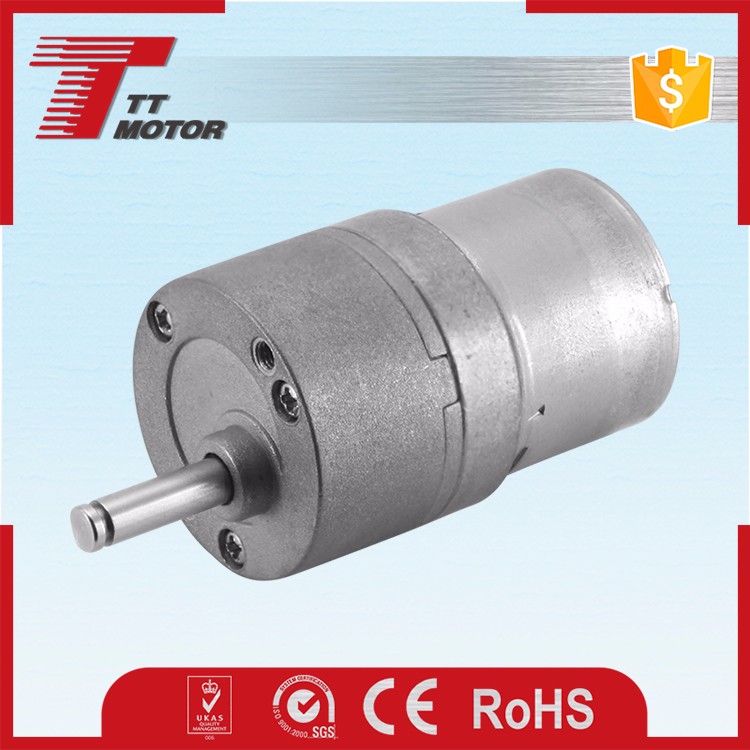

Related Motor Options

Packing & Delivery Details

Packaging Setup: Individual product protection, packed 500 units per master carton box.

Shipping Estimations & Methods:

DHL 3-5 Working Days

UPS 5-7 Working Days

TNT 5-7 Working Days

FedEx 7-9 Working Days

EMS 12-15 Working Days

Sea Freight Varies by Destination

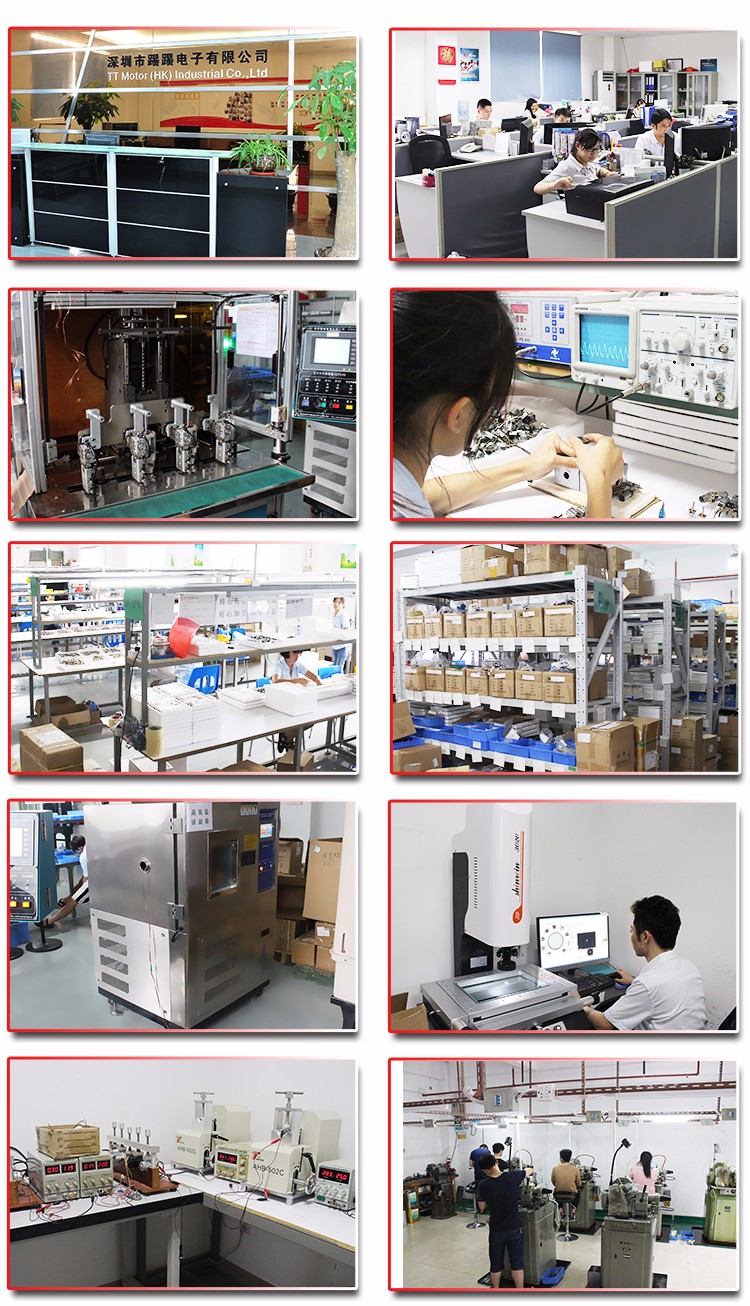

Company Profile & Quality Control

Specializing in micro motors, gear motors, and custom drive components. Operating continuously since 2000, products are widely utilized in automotive systems, consumer appliances, industrial automation, and entertainment platforms. Focusing on durable and high-efficiency component output, approximately 98% of overall production is distributed globally to partners, micro-motor distributors, and end-user system integrators.

Frequently Asked Questions (FAQ)

Q What is the process to place an order?

The typical order flow begins with your formal inquiry. We then provide a matching quotation. After negotiating specifications and verifying product samples, the order proceeds to contract signing, deposit payment, mass production, quality control, balance completion, and subsequent shipment delivery.

Q Are samples of the mini gear motor available?

Yes, evaluation samples can be prepared. Please reach out to verify exact parameters. Initial sample costs are standardly credited back once a formal production run order is confirmed.

Q Which shipping channels can be arranged?

We accommodate multiple delivery pipelines including express couriers (DHL, UPS, FedEx, TNT, EMS), international postal options, and sea cargo networks depending on delivery urgency and volumetric weight.

Q What are the standard production and shipping lead times?

Lead times are dictated by quantity and design customization. Mass production processes generally require 15 to 25 working days. Shipping times range from 3-9 working days for express delivery, up to longer durations for sea transport.

Q What payment structures are accepted?

Standard payment methods include T/T bank transfers and PayPal. A 30% to 50% deposit structure is required to commence batch production, with the remaining balance settled prior to final cargo shipment.

Q Can the 12mm gear motor be modified with different gear ratios?

Yes, multiple standard reduction ratios between 3 and 1000 are available. Custom ratios and shaft adjustments can be reviewed upon submission of specific application demands.
